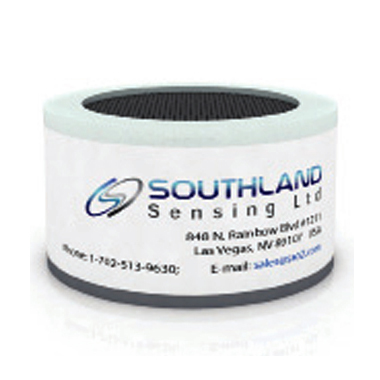

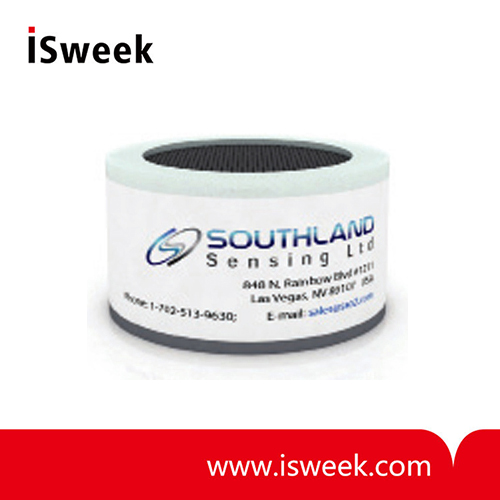

General Purpose Percent Oxygen Sensor - PO2-15

? Sensor Technology: Micro Fuel Cell
? Signal Output: 78 - 122 uA
? Measuring Range: 0 - 100 Percent
? Response Time T90: 13 Seconds
? Accuracy Full Scale: ±1% of Signal
? Repeatability F.S.: ±0.5%
? Operating Temp: 0 to 50°C
? Humidity: 0 - 100% RH (Non - Condensing)

  • Model Number: PO2-15
  • Data Sheet: Date Sheet File
Quantity:
- +
  • General Purpose Percent Oxygen Sensor
  • General Purpose Percent Oxygen Sensor
Mouse over image to zoom
Share:

Product Specification

PO2-15 Percent Oxygen Sensor
General Purpose % Oxygen. Competitive Replacement


PO2-15 Percent Oxygen Sensor Direct Replacement Guide
Analytical Industries: PSR-11-25
Teledyne: B-5


PO2-15 Percent Oxygen Sensor Specifications:

Sensor Technology

 Micro Fuel Cell

Signal Output1

 78 - 122 uA

Measuring Range

 0 - 100 Percent

Response Time T90

 13 Seconds

Accuracy Full Scale2

 ± 1% of Signal

Repeatability F.S.

 ±0.5%

Temp Coefficient

 2.54 % /°C

Operating Temp

 0 to 50°C

Storage Temp

 0 to 45°C

Recommended Flow

 0.5 - 2 SCFH

Humidity

 0 - 100% RH (Non - Condensing)

Expected Life3

 34 - 38 Months

Storage

 6 Months

Warranty4

 12 Months

PCB Connection

 Center Foil Negative Outer Foil Positive


1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic temperature change can result in a maximum error of ± 10%.
3. Expected life is calculated when O2 is 20.9% @ 25°C, sea level
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
