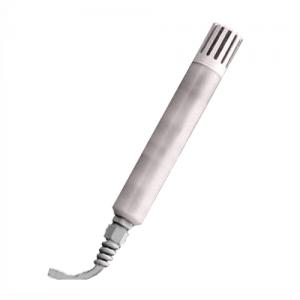

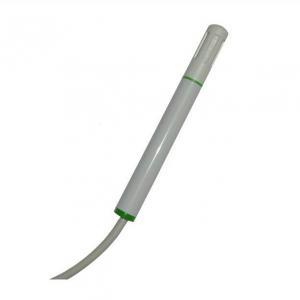

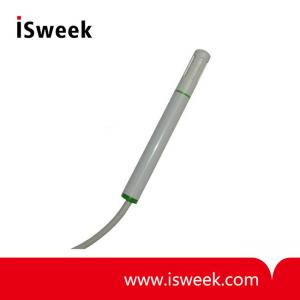

Indoor Relative Humidity Sensor - URI
? Humidity typical range: 0 ~ 100%Rh
? Resolution: 0.1%
? Accuracy: ?± 2% f.s.?
? Humidity response time?: < 90sec (10 ~ 80%RH)?
? Type of transducer?: capacitive?
? Signal out?: 0 - 1 Vdc, 4 - 20mA?
? Working conditions?: -40 ~ +60°C?
? Power supply?: 10 ~ 30Vdc?
- Quantity:
- - +
Product Specification
URI?Indoor Humidity Sensor?DESCRIPTION
Sensor made of plastic material for the measurement of indoor humidity. Its small size allows use in hidden conditions.?
Sensor made of a thin film that changes the capacity in linear mode with the air humidity and can be interfaced to a wireless transmission module that uses the ZigBee protocol in such a way is possible the creation of a network consisting of several sensors, directly acknowledged by a datalogger series TMF100 or TMF500 Nesa using appropriate gateway.
Available with electrical signal output in voltage (0 - 1Vdc) or current 4-20mA.
URI?Indoor Humidity Sensor?Highlighted specs
? Accurated and reliable Air Humidity Sensor
? Very limited dimensions and weight
? According to CE norms
? Ideal for wireless network using ZigBee modules
URI?Indoor Humidity Sensor?Technical Data
Humidity typical range |
0 ~ 100%Rh |
Resolution |
0.1% |
Accuracy |
± 2% f.s. |
Humidity response time |
< 90sec (10 ~ 80%RH) |
Type of transducer |
capacitive |
Signal out |
0 - 1 Vdc, 4 - 20mA |
Working conditions |
-40 ~ +60°C |
Power supply |
10 ~ 30Vdc |
Current consumption |
< 0.1W |
Weight |
<80g |
URI?Indoor Humidity Sensor?Order Form
Sensor |
Indoor Relative Humidity Sensor |
URI |
A B |
05 10 xx |
ZBS1a |
Output |
0 ~ 1Vdc 4 ~ 20mA with option MCS module |
||||
Accessories |
CS05 – Cable 5m sensor-datalogger 05? CS10 – Cable 10m sensor-datalogger 10? CSxx – Cable xx* m length sensor – datalogger |
||||
ZBS1a - Single-channel ZigBee module for low-power sensors, complete with antenna and power supply system, separated between radio and sensor, with lithium batteries 3.6 Vdc / max19Ah (typical autonomy 3yrs). |
example of order code
URI? |
A | 10 | ? ? ? |
* specify the length for no standard measures
