Intrinsically Safe Analog Ultrasonic Sensor - RPS-409A-IS2

? Ranges: 4-40", 6-80", 12-144", 12-216"
? Entity Parameters: See Control Drawing No. Ex05021114
? Power Input: 16 - 30VDC Reverse Polarity Protected
? Input Current: 24mA maximum with 24VDC applied to the safety barrier
? Output: Analog Voltage Output 0 - 10V
? Ambient Temperature: -40 to +60°C or -40 to +140°F
? Humidity: 0 - 95% Non-Condensing

  • Model Number: RPS-409A-IS2
  • Data Sheet: Date Sheet File
Quantity:
- +

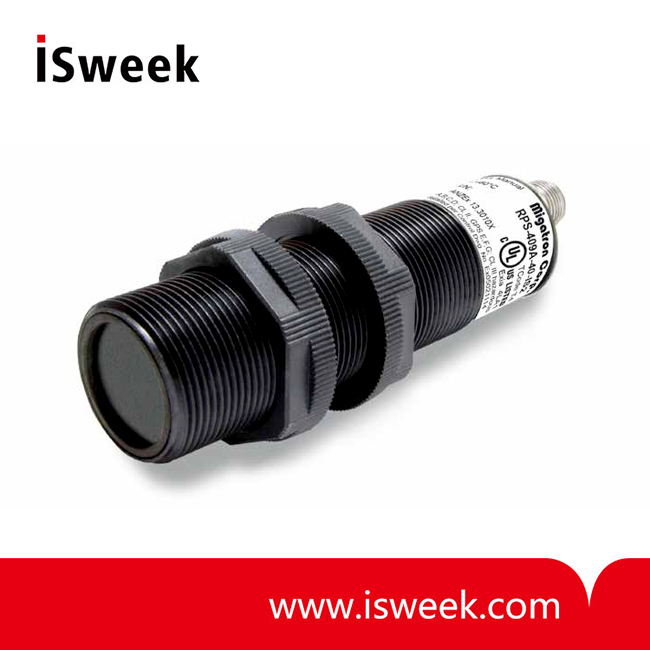

  • Intrinsically Safe Analog Ultrasonic Sensor
  • Intrinsically Safe Analog Ultrasonic Sensor
Mouse over image to zoom
Share:

Product Specification

RPS-409A-IS2 Ultrasonic Sensor
Certified Safe for Use In Explosive Environments

RPS-409A-IS2 Ultrasonic Sensor Features
Intrinsically Safe
ANZEx, ATEX, IECEx, UL, cUL
Various Sensing Ranges
Temperature Compensation
Wide Temperature Range
LED Indicator
Analog Voltage Output
? PPS Enclosure
Sync/Tx Input Line

RPS-409A-IS2 Ultrasonic Sensor Description
The RPS-409A-IS2 is an intrinsically safe analog ultrasonic sensor available in a variety of ranges. The RPS-409A-IS2 sensors can be used in hazardous gas or dust environments classified as Zone 0, 1, 2, 20, 21, or 22 for ATEX/IECEx, and Class I, II, or III for UL/cUL when used with approved intrinsic safety barrier(s). See the RPS-409A-IS2 User Manual and Control Drawing No. Ex05021114 for further information on installation in hazardous locations.

The sensor is self-contained in a 30mm barrel style enclosure, and is powered by 16 - 30V dc with reverse polarity protection.

The RPS-409A-IS2 has a short circuit protected 0 - 10 V dc analog output. The analog voltage is a fixed volts per inch based on the maximum range of the unit. For example when using the RPS-409A-80-IS2, the output is a linear 0.125 V per inch. A target placed 10 inches from the sensor will result in an output of 1.25 V or a target placed at 80 inches from the sensor will result in an output of 10 V.

The RPS-409A-IS2 has built-in temperature compensation to provide accurate readings throughout the entire operating temperature range.

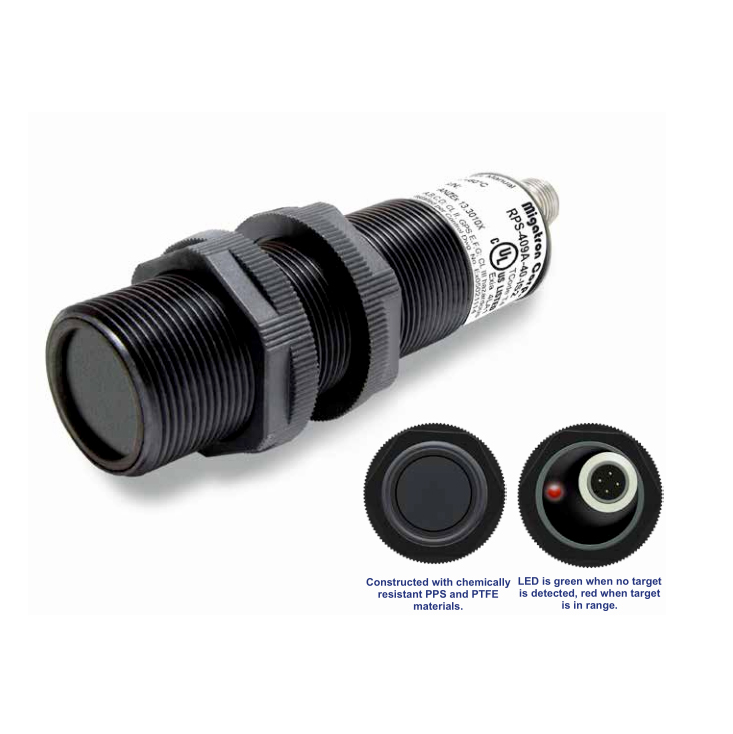

An LED indicator is provided. The LED is green with no target detected and changes to red when a target is detected.

The sensor is completely sealed and connection must be made with a cable having a rating of IP67 or greater.

In addition to the analog output line the sensor also has a Sync/Tx line. This line can be used for connecting multiple sensors together (Sync) to prevent cross talk, or to control when the sensor transmits (Tx).

The RPS-409A-IS2 is designed to take advantage of today's PLC and computer analog input cards. The numerical values that are programmed into the PLC or computer will determine the zero and span of the sensor.


RPS-409A-IS2 Ultrasonic Sensor Specifications

Model Number:
Sensor Range:
Transducer Frequency:
Response Time:
Volts Per Inch:
RPS-409A-40-IS2
4 - 40"
175kHz
85ms
0.250
RPS-409A-80-IS2
6 - 80"
135kHz
85ms
0.125
RPS-409A-144-IS2
10 - 144"
70kHz
175ms
0.069
RPS-409A-216-IS2
12 - 216"
70kHz
175ms
0.046

Entity Parameters:
See Control Drawing No. Ex05021114
Power Input:
16 - 30VDC Reverse Polarity Protected
(A minimum of 24VDC must be applied to the safety barrier)
Input Current:
24mA maximum with 24VDC applied to the safety barrier
Output:
Analog Voltage Output 0 - 10V
(Load 100k Ohms to infinity) Short Circuit Protected
Ambient Temperature:
-40 to +60°C or -40 to +140°F
Humidity:
0 - 95% Non-Condensing
Enclosure Material:
Polyphenylene Sulfide (PPS) Enclosure with PPS and PTFE sensing face
Approvals:
Australia and New Zealand - ANZEx 13.3010X
Ex ia I Ma, Ex ia IIC T4 Ga, Ex ia IIIC T101°C Da

Canada and USA - UL/cUL File # E226209
CL I, GPS A,B,C,D; CL II, GPS E,F,G; and CL III

Europe (CENELEC) - DEMKO 12 ATEX 1103028X
EX I M1 / II 1 GD

IECEx - IECEx UL 12.0001X
Ex ia I T4 Ma, Ex ia IIC T4 Ga, Ex ia IIIC T101°C Da


PART NUMBER
RANGE
OUTPUT / DESCRIPTION
RPS-409A-40-IS2
RPS-409A-80-IS2
RPS-409A-144-IS2
RPS-409A-216-IS2
4 - 40"
6 - 80"
10 - 144"
12 - 216"
0 - 10VDC Analog Output
0 - 10VDC Analog Output
0 - 10VDC Analog Output
0 - 10VDC Analog Output
F32-5496302
F32-5496305
F50-9240905
F33-5441504

2 meter Cable, M12 4-Pin IP67 18 AWG - Sold Separately
5 meter Cable, M12 4-Pin IP67 18 AWG - Sold Separately
ZSB-409A Safety Barrier - Sold Separately
DIN Rail Grounding Block - Sold Separately
