Low Cost Trace or Percent Oxygen Transmitter - EMD-485
? Optional Ranges: 10/100/1000ppm/1%/5%/10%/25%/100%
? Accuracy: +/- 1% Full Scale Range
? Flow: 0 - 5 SCFH
? Output: 4-20mA & 0 - 1VDC
? Power: 12 - 24VDC
? Response time: T90 in 10 Seconds
? Temperature: 0-50 Deg C
- Quantity:
- - +
Product Specification

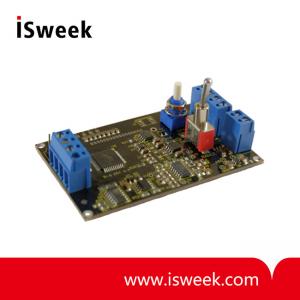

EMD-485 OEM Oxygen Transmitter
? Low Cost Trace or Percent Oxygen Transmitter
? 4 - 20mA Analog Output and 0 - 1 VDC
? New Updated Microprocessor Based Design
? Factory Configurable Ranges
? Optional Display, Sensor, Sensor Housings
EMD-485 OEM Oxygen Transmitter Applications:
? Inert Glove Box Systems
? Nitrogen and O2 PSA Generators
? Laboratories & Universities
? Beverage Grade CO2 Monitoring
? Air Separation Plants & Many Others
EMD-485 OEM Oxygen Transmitter Specifications:
Ranges: |
Two Pre-Configured (See Options) |
Accuracy: |
+/- 1% Full Scale Range* |
Calibration: |
Every 2-3 Months |
Calibration: |
On Board Potentiometer |
Classification: |
General Purpose |
Connections: |
See Options |
Dimensions : |
Board |
Display: |
None |
Flow: |
0 - 5 SCFH |
Output: |
4-20mA & 0 - 1VDC |
Power: |
12 - 24VDC |
Response time: |
T90 in 10 Seconds |
Sensor (Optional): |
TO2-1x Trace Oxygen |
Sensor Life: |
15-21 months |
Temperature: |
0-50 Deg C |
Warranty: |
9 Months Sensor |
Warranty: |
12 Months Electronics |
*Accuracy at constant conditions
EMD-485 OEM Oxygen Transmitter Optional Accessories:
? Optional Ranges: 10/100/1000ppm/1%/5%/10%/25%/100% (Other Ranges Available on Request)
? H3 Flow Through Sensor Housing 1/8"
? H1 Direct Install KF-40 Sensor Housing

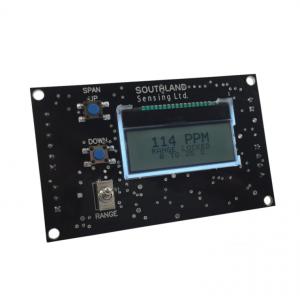

? Optional Graphical Display W/ Backlight
? Other Customization Packages Available

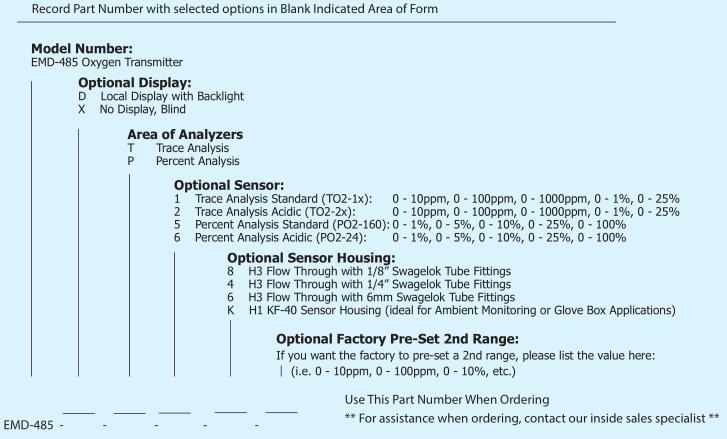

EMD-485 OEM Oxygen Transmitter Order Information
