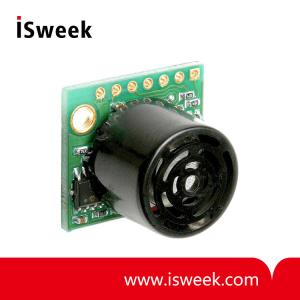

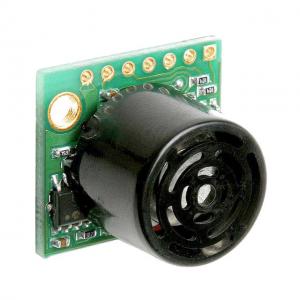

LV-ProxSonar-EZ3 High Performance Ultrasonic Rangefinder - MB1034

? Resolution of 1 inch
? Maximum reported range of 254 inches (645 cm)
? ~2 foot proximity detection zone (24 inches or 60 cm)
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial

Model Number: MB1034
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MB1034?LV-ProxSonar-EZ3
High Performance Ultrasonic Rangefinder

MB1034?LV-ProxSonar-EZ3?Ultrasonic Rangefinder?Product Description

These ultrasonic proximity sensors detect objects in a calibrated detection zone. The LV-ProxSonar-EZ sensors report when an object (such as a person) enters the detection zone. The target is released after leaving the LV-ProxSonar-EZ detection zone.

The LV-ProxSonar-EZ3 has a detection zone of ~2 feet and will allow for 13+ simultaneous sensors.

MB1034?LV-ProxSonar-EZ3?Ultrasonic Rangefinder?Product Specifications
??Resolution of 1 inch
??~2.5 second target acquire time*
??~1.5 second target release time*
??Automatic multi-sensor operation
??People sensor
??Maximum reported range of 254 inches (645 cm)
??~2 foot proximity detection zone (24 inches or 60 cm)
??Run up to 13+ sensors in the same environment
??Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
??42kHz Ultrasonic sensor measures distance to objects
??RoHS Compliant
??Read from sensor outputs: Serial and Pulse Width
??Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
??Operates from 2.5-5.5V
??Low 2.0mA average current requirement
??Small, light weight module
??Designed for easy integration into your project or product
??2 foot detection zone
*Custom times available for a nominal NRE fee

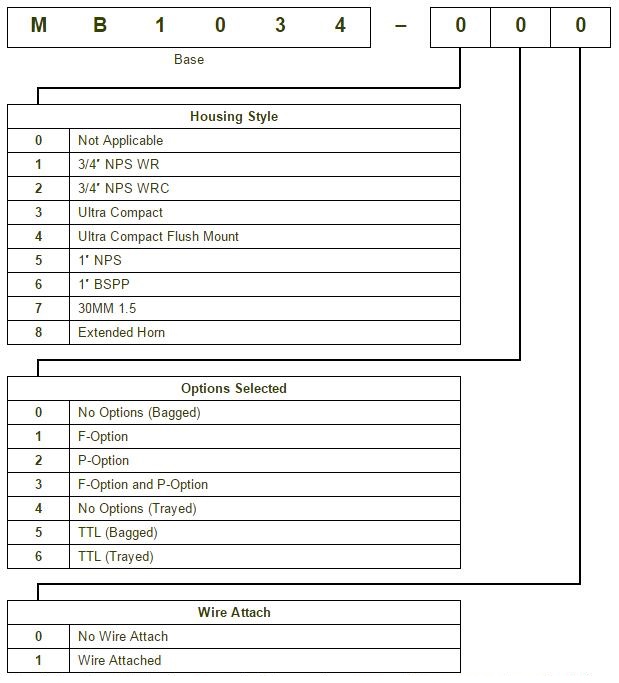

MB1034?LV-ProxSonar-EZ3?Ultrasonic Rangefinder?Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
