Percent Oxygen Sensor (O2 sensor) - PO2-2x

? Sensor Technology: Micro Fuel Cell
? Signal Output: 105- 260uA
? Measuring Range: 0 - 100 Percent
? Response Time T90: 7 Seconds
? Accuracy Full Scale: ±1% of Signal
? Repeatability F.S.: ±0.5%
? Operating Temp: 0 to 50oC
? Humidity: 0 - 100% RH (Non - Condensing)

  • Model Number: PO2-2x
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Percent Oxygen Sensor (O2 sensor)
  • Percent Oxygen Sensor (O2 sensor)
Mouse over image to zoom
Share:

Product Specification

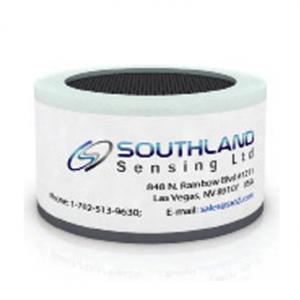

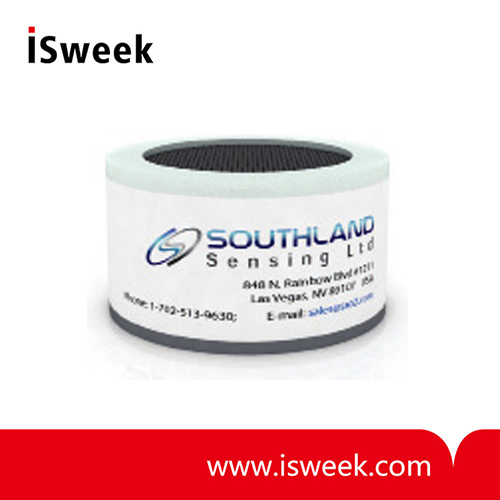

PO2-2x Percent Oxygen Sensor (O2 sensor)
General Purpose % O2 measurement when CO2 > 0.1%. Use when acid gases are present (CO2, HCl, HCN, etc.)



PO2-2x Percent Oxygen Sensor (O2 sensor) Direct Replacement Guide
Analytical Industries: XLT-11-15
Teledyne: A-3, A-5


PO2-2x Percent Oxygen Sensor (O2 sensor) Specifications:

Sensor Technology

 Micro Fuel Cell

Signal Output1

 105- 260uA

Measuring Range

 0 - 100 Percent

Response Time T90

 7 Seconds

Accuracy Full Scale2

 ± 1% of Signal

Repeatability F.S.

 ±0.5%

Temp Coefficient

 2.54 % /oC

Operating Temp

 0 to 50oC

Storage Temp

 0 to 45oC

Recommended Flow

 0.5 - 2 SCFH

Humidity

 0 - 100% RH (Non - Condensing)

Expected Life3

 12 - 15 Months

Storage

 6 Months

Warranty4

 9 Months

PCB Connection

 Center Foil Negative Outer Foil Positive


For use in CO2 applications

1. Signal output is measured in air at 25oC, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic temperature change can result in a maximum error of ± 10%.
3. Expected life is calculated when O2 is 20.9% @ 25oC, sea level
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
