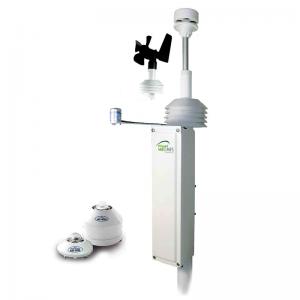

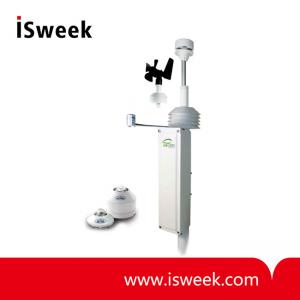

PVmet Weather Stations - PVmet 500 SERIES

? Power Requirements: 10 to 30 VDC at 50mA
? Operating Temperature: -40° to 60°C (-40° to 140°F)
? Operating Relative Humidity: 0-100%, Condensing
? Operates over a broad range of temperature
? Easy set-up & fully assembled
? Durable & weather resistant

  • Model Number: PVmet 500 SERIES
  • Data Sheet: Date Sheet File
Quantity:
- +
  • PVmet Weather Stations
  • PVmet Weather Stations
Mouse over image to zoom
Share:

Product Specification

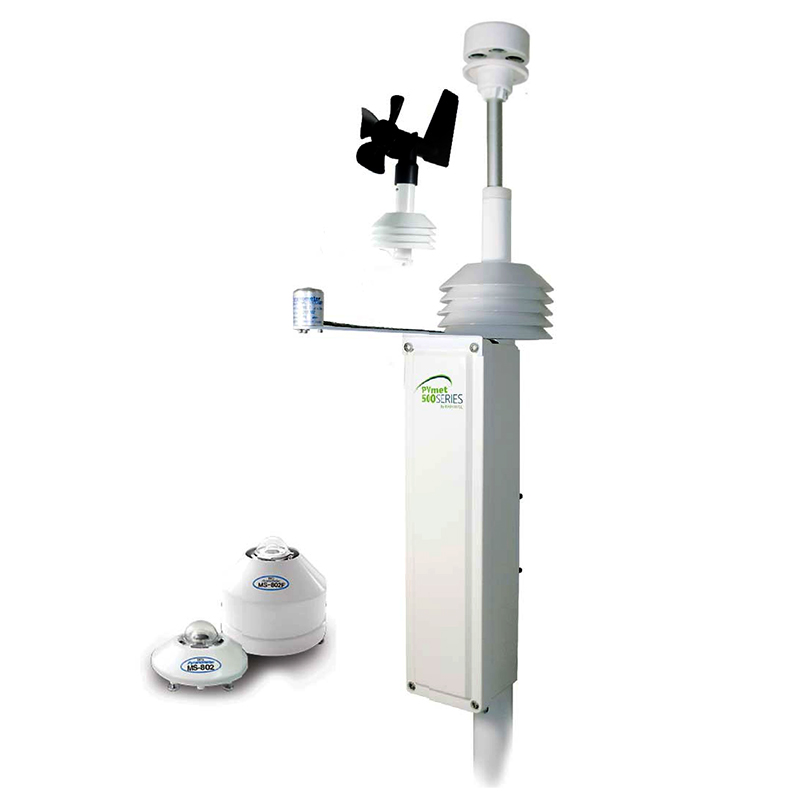

PVmet 500 SERIES Weather Stations Introducing
PVmet 500 SERIES is the first multifuctional, component-based professional weather station designed and built specifically for PV efficiency monitoring.

PVmet Weather Stations provide strategic environmental data that will increase the value of any on-site monitoring system.

All RainWise weather stations are shipped to you fully assembled and factory calibrated, for rapid out-of-the-box installation with standard MODBUS RTU interface and all are SunSpec Certifi ed.

Performance Benefits
? EKO precision solar sensors for effi cient monitoring
? Operates over a broad range of temperature
? Easy set-up & fully assembled

Tested Tough
? Durable & weather resistant
? Ultra-violet inhibited
? Stainless steel hardware
? Optional add-on sensors

Multiple Communication Protocols
? SunSpec certifi ed or compliant
? Integration via MODBUS RTU interface using RS-485

FEATURES & OPTIONS
SUPPORTS
(3) Irradiance Sensors
(4) Back-of-Panel Temp Sensors
SENSORS
Ultra Sonic Anemometer  (Optional)
Mini-Aervane  (Optional)
Ambient Temperature
Relative Humidity
Barometric Pressure
Rain Gauge  (Optional)

PVmet 500 SERIES Weather Stations SPECSHEET

Power Requirements
10 to 30 VDC at 50mA


Operating Environment
Temperature
-40° to 60°C (-40° to 140°F)
Relative Humidity
0-100%, Condensing


Solar Irradiance Sensor Capabilities
Silicon Diode

Thermopile

Reference Cell

Sensitivity
Down to 5uV per W/m2
Analog Input
0 to +/-2.5V
Update Rate
1Hz
Resolution
1W/m2


Ambient Air Temperature Sensor
Range
-40° to 80°C (-40° to 176°F)
Accuracy
+/- 0.3°C (.54°F)
Τhermal Time Constant
30 sec.
Resolution
0.1°C


Ultra Sonic Anemometer
Speed Range
0.25-45 m/s (0.56 -100 MPH)
Speed Sensitivity
0.13 m/s (0.29 MPH)
Direction Range
0-359°
Direction Sensitivity
+/- 1°
Independent of weather conditions

Speed Resolution
0.1 m/s
Direction Resolution



Back of Module (BOM) Temperature Sensors
Range
-40° to 80°C(-40° to 176°F)
Accuracy
+/- 0.3°C (.54°F)
Thermal Time Constant
270 sec
Cable Length
7.62m (25 ft)
Resolution
0.1°C


Materials
Polyvinyl Chloride, Acrylonitrile Butadiene Styrene,
Stainless Steel, Anodized Aluminum, Lexan?,
Makrolon? 2658.


RS-485 Serial Port
Mode
2-Wire Half Duplex
Baud Rate
9600, 19.2k
Termination
Selectable


Electronics
Lead-free RoHS Compliant


Physical
Packaged Dimensions
73.99cm x 35.56cm x 20.32cm (29” x 14” x 8”)
Packaged Weight
3.17 kg (7 lbs.)
