Self Contained Ultrasonic Proximity Sensor - RPS-401/RPS-426

? Ranges: 4-40" & 8-80"
? Power Input: 20 - 30VDC Reverse Polarity Protected
? Input Current: 50mA
? Ambient Temperature: 0 - 60oC or 32 - 140oF
? Humidity: 0 - 95% Non-Condensing
? Weight: ?11 ounces?
? Narrow Sensing Beam

  • Model Number: RPS-401/RPS-426
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Self Contained Ultrasonic Proximity Sensor
  • Self Contained Ultrasonic Proximity Sensor
  • Self Contained Ultrasonic Proximity Sensor
Mouse over image to zoom
Share:

Product Specification

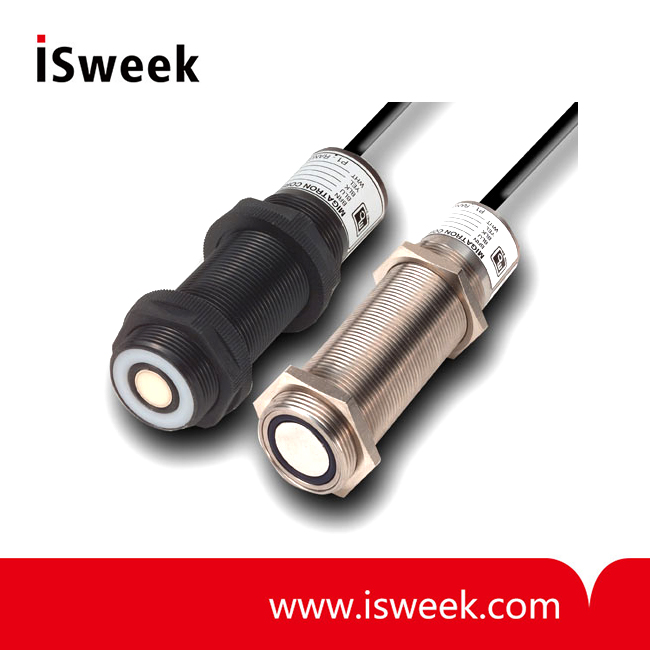

RPS-401/RPS-426 Self Contained Proximity Sensors

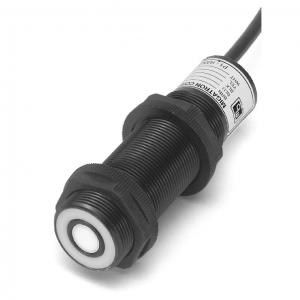

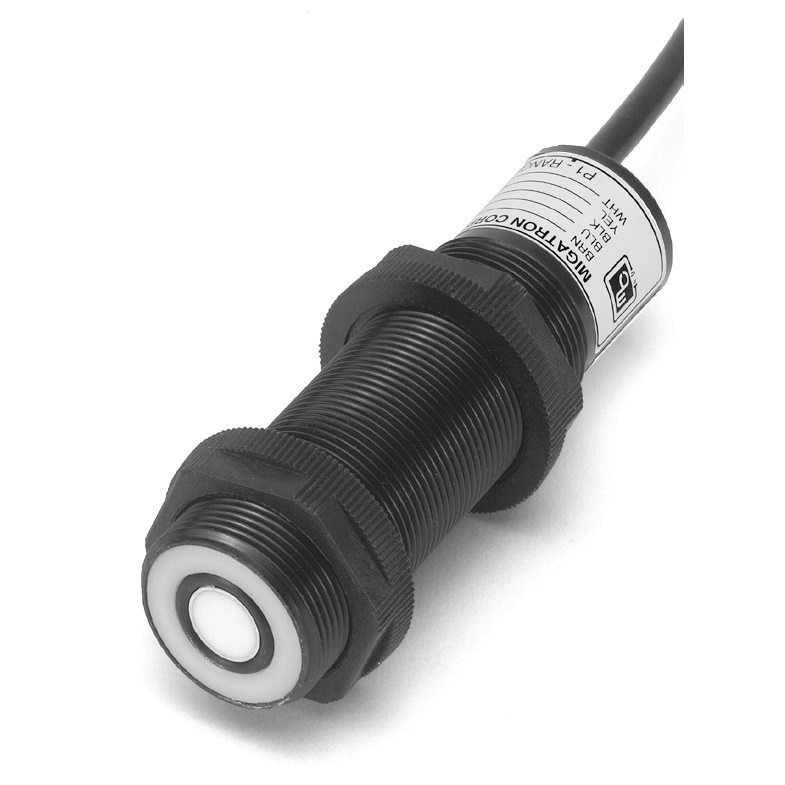

RPS-401 in Plastic Housing

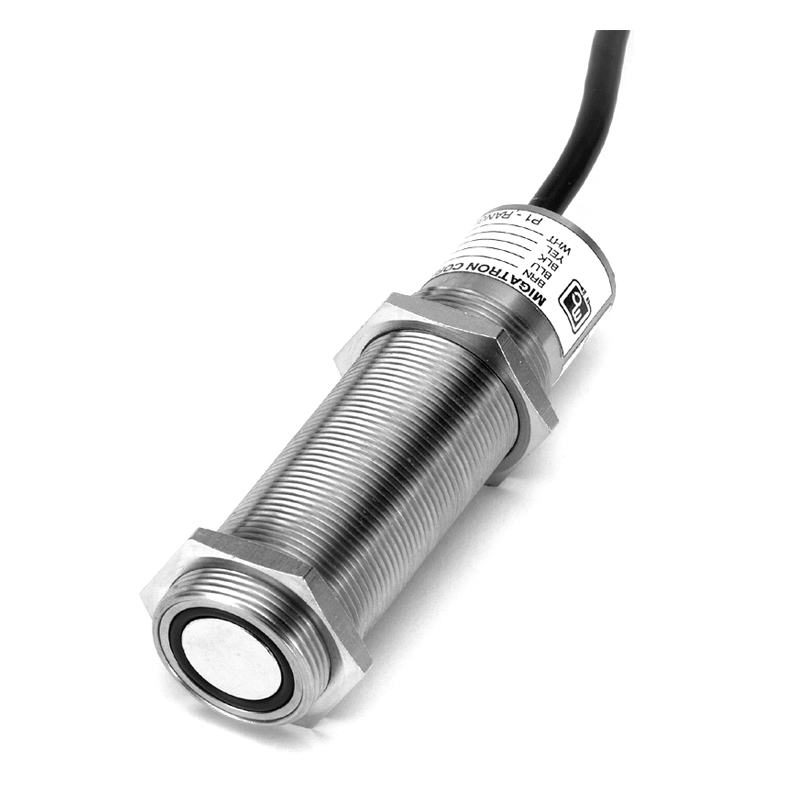

RPS-426 in Stainless Steel Housing

RPS-401/RPS-426 Ultrasonic Proximity Sensor Features
? Self Contained
? Sensing Range 4-40", 8-80"
? Narrow Sensing Beam
? High Frequency
? Range & Hysteresis Controls
? Reverse Polarity Protected
? Short Circuit Protected
? Operates in Hostile Environments
? Operating Voltage 20-30 VDC
? Isolated N.O. N.C. Solid State Relays

RPS-401/RPS-426 Ultrasonic Proximity Sensor Description
The RPS-401 and RPS-426 are self-contained ultrasonic sensors in a 30mm barrel housing, powered by 20-30VDC. A sealed transducer provides protection in hostile environments. The sensor can be operated in two modes a proximity and a hysteresis mode. Operating as proximity sensors and level sensors. The frequency of operation for the RPS-401 is 212kHz for the 4″ to 40″ range and 150kHz for the 8″ to 80″range. The RPS-426 has an 8″ to 80″ range, and operates at a frequency of 150kHz. These sensors also have built-in short circuit protection for the outputs as well as reverse polarity protection on the input.

The construction of the RPS-401 sensor is PVC plastic and the RPS-426 is Stainless Steel. A barrel housing is used 30mm in diameter by 100mm in length. For set up purposes an LED indicator is provided. When not detecting the LED will illuminate green and when detecting the LED will illuminate red. The outputs consist of two solid state relays N.O. and N.C. which can switch 2-130VAC or VDC up to 100mA DC or 50mA AC continuous. The relay outputs are short circuit protected and isolated up to 1500 volts rms. A standard 6′ cable is provided or a quick disconnect (QD) version is also available.

RPS-401/RPS-426 Ultrasonic Proximity Sensor Specifications

Operational Range:
    RPS-401

    RPS-426

Adjustable 4 - 40"
Adjustable 8 - 80"
Adjustable 8 - 80"
Power Input:
20 - 30VDC Reverse Polarity Protected
Input Current:
50mA
Ambient Temperature
0 - 60oC or 32 - 140oF
Humidity:
0 - 95% Non-Condensing
Housing:
    RPS-401
    RPS-426

PVC with PVC sensing face
303 Grade Stainless Steel with PPS and PTFE sensing face
Output:
2 Solid State Relays N.O. & N.C.
Isolation 1500VRMS 2 - 130VAC or VDC
50mAAC or 100mADC Continuous Short Circuit Protected
Transducer Frequency:

4-40"
175kHz
8 - 80"
135kHz
Response Time:

4 - 40"
30ms
8 - 80"
50ms
Weight:
11 ounces

PART NUMBER
RANGE
OUTPUT / DESCRIPTION
RPS-401-40
RPS-401-80
RPS-401-40QD
RPS-401-80QD
4 - 40"
8 - 80"
4 - 40"
8 - 80"
2 Solid State Relays N.O. & N.C.
2 Solid State Relays N.O. & N.C.
2 Solid State Relays N.O. & N.C. - Cable Sold Separately
2 Solid State Relays N.O. & N.C. - Cable Sold Separately
RPS-426-80
RPS-426-80QD
8 - 80"
8 - 80"
2 Solid State Relays N.O. & N.C.
2 Solid State Relays N.O. & N.C. - Cable Sold Separately
F32-5001162
F32-5001164

2 meter Cable for QD version, 1/2"-20 5-Pin 22 AWG
6 meter Cable for QD version, 1/2"-20 5-Pin 22 AWG
