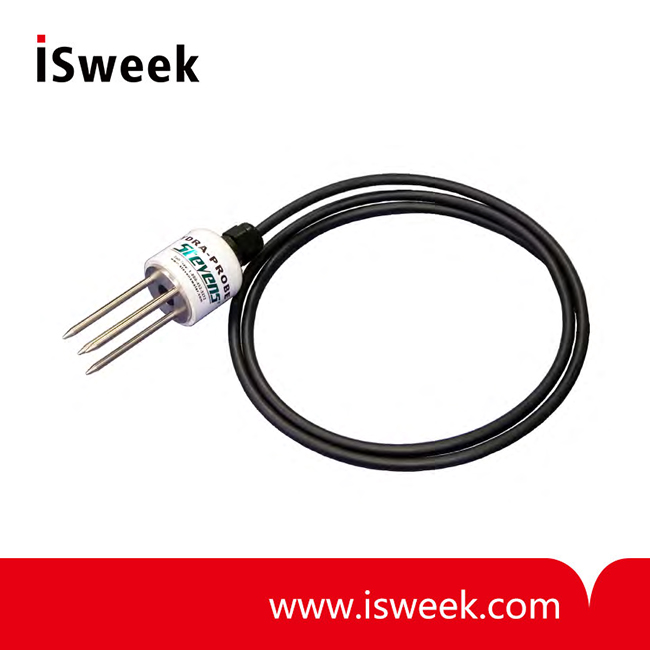

Soil Moisture and Salinity Sensor - HydraProbe

? MEASUREMENT: Soil moisture for inorganic & mineral soil
? ACCURACY:
± 0.01 WFV for most soils
± ≤0.03 max for fine textured soils
? RANGE: From completely dry to fully saturated (from 0% to 100% of saturation)
? RESOLUTION: 0.001

  • Model Number: HydraProbe
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Soil Moisture and Salinity Sensor
  • Soil Moisture and Salinity Sensor
  • Soil Moisture and Salinity Sensor
Mouse over image to zoom
Share:

Product Specification

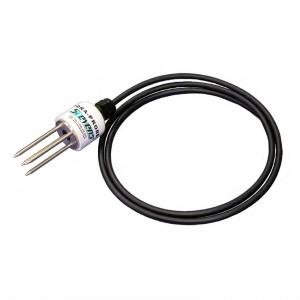

HydraProbe?Soil Moisture and Salinity Sensor?Description
HydraProbe is a rugged soil sensor with patented technology that provides continual, consistent accuracy measuring the three most significant soil parameters simultaneously—moisture, salinity and temperature.

As the most scientifically researched soil sensor available, it has been depended on by the USDA, NOAA, NASA, leading irrigation companies, and many universities for over 20 years. It’s been engineered to be exceptionally rugged and will provide data that you can trust year after year.

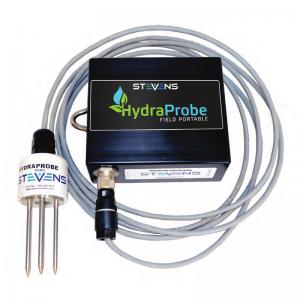

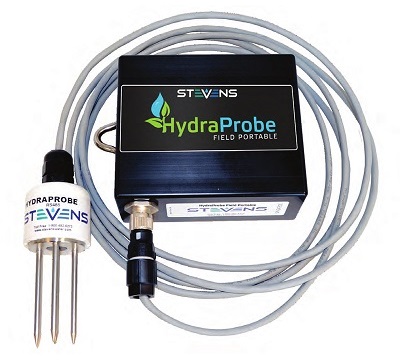

HydraProbe to Go
The HydraProbe Field Portable puts the power of HydraProbe in the palm of your hand.
Take soil measurements anywhere, without the effort or expense of setting up a permanent soil monitoring system. Your smartphone communicates wirelessly with the HydraProbe using an ad-hoc wi-fi network created by the HydraProbe Field Portable.

Simply insert the probe into the soil, and tap on the “Sample” button in the app. The location of each measurement is recorded along with the soil measurement data. All data can be saved and emailed as a .CSV for analysis in Excel.


HydraProbe?Soil Moisture and Salinity Sensor TECHNICAL SPECIFICATIONS
MEASUREMENT
ACCURACY
RANGE RESOLUTION
Real dielectric permittivity
(isolated)
< ± 0.5% or ± 0.2 dielectric units
1 to 80 where 1 = air,
80 = distilled water
0.001
Soil moisture for inorganic
& mineral soil
± 0.01 WFV for most soils
± ≤0.03 max for fine textured soils*
From completely dry to fully saturated
(from 0% to 100% of saturation)
0.001
Bulk electrical conductivity
± 2.0% or 0.02 S/m whichever is?
typically greater*

0 to 1.5 S/m
0.001
Temperature**
± 0.3° C
-10°C to +60° C
0.1°C
Inter-sensor variability
± 0.012 WFV (θ m3 m-3 )
n/a

* Accuracy may vary with some soil textures.?
** Extended temperature range sensor (down to -40° C) available

Electrical and Communication

SDI-12
RS485
Power supply
9-20 VDC
9-20 VDC
Power consumption
<1 mA idle / 10 mA active
<1 mA idle / 30 mA active
Cable
3-wire: power, ground, data
4-wire: power, ground, com+, com-
Max. cable length
60 m (197 ft.)
1,219 m (4,000 ft.)
Non-spliced: 304.8 m (1,000 ft.)
Baud Rate
1200 9600
Communication?
protocol

SDI-12 Standard v. 1.2
Custom or open spec
Addressing
Serial; allows multiple sensors to be connected to any RS485 or SDI-12 data logger via a single cable.

Environmental
Operating?Temperatures
??In soils: freezing to +60° C
??Standard temperature probe range:?-10° C to +60° C
??Extended temperature probe range:?-40° C to +60° C*
Storage Temperatures
-40° C to +60° C
Water Resistance
Tolerates continuous full immersion
Cable
18 gauge (20 gauge for RS-485/analog),?UV resistant, direct burial
Vibration and?shock resistance
Excellent; potted components in PVC housing and 304 grade?
stainless steel tines

Physical
Length
4.9” (124 mm)
Diameter
1.6” (42 mm). Optional slim housing?version available: 1.4” (35.8 mm)
Weight
7 oz. (200 g). Optional slim housing?version available: 6.5 oz. (184 g)
Cable weight
0.86 oz/ft (80g/m)
Sensing volume?(cylindrical region)
Length: 2.2” (5.7 cm)
Diameter: 1.2” (3.0 cm)
* ”Extended Temperature Range” version available, which can measure down to -40° F (-40° C) for research, cold-climate, high-altitude, arctic applications or any ot her measurement situation where there will be significant below-freezing ground temperatures.

HydraProbe?Soil Moisture and Salinity Sensor?ORDERING INFORMATION
PART #
DESCRIPTION
93640-025 / 63646-025
HydraProbe with 25’ (7.62 m) cable, SDI-12 / RS485
93640-050 / 63646-050
HydraProbe with 50’ (15.24 m) of cable, SDI-12 / RS485
93640-100 / 63646-100
HydraProbe with 100’ (30.48 m) of cable, SDI-12 / RS485
93633-003
HydraProbe Field Portable
