Soil Moisture Sensor - SUT

? Measuring range: 0 ~ 100% VWC (volumetric water content)
? Accuracy: ± 6% VWC, greater accuracy on specific request for calibration
? Time constant: 1 sec (medium time)
? Working temperature: -40 ~ 60°C
? Power Consumption: 10 ~ 30 Vdc; 5mA@12Vdc (typical)

  • Model Number: SUT
  • Data Sheet: Date Sheet File
Quantity:
- +

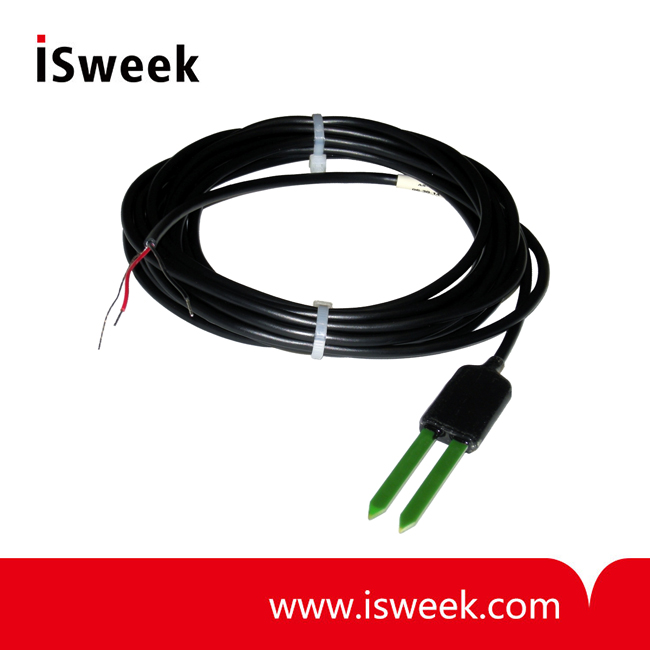

  • Soil Moisture Sensor

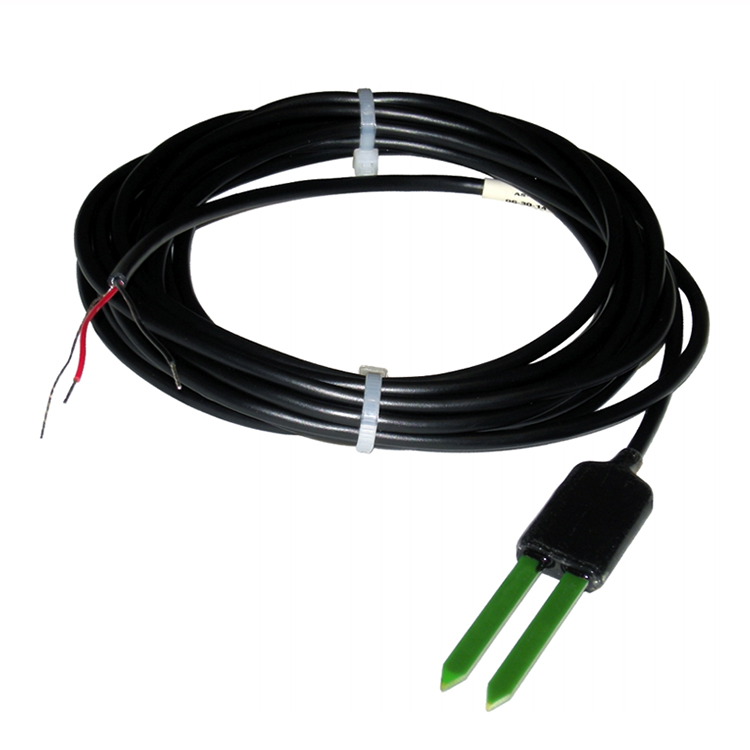

  • Soil Moisture Sensor
Mouse over image to zoom
Share:

Product Specification

SUT?Soil Moisture Sensor?DESCRIPTION
The soil moisture sensor is a device that detects the dielectric constant of the soil by measures in high frequency (70Mhz). This value depend on the soil moisture and is insensitive to water salinity. Water in soil is a conductor and on the basis of its concentration is possible to obtain an indication of the humidity of the soil. The sensor is automatically temperature compensated and has a standard output 4-20 mA, or normalized 0 - 2Vdc or digital RS485/Modbus using MCS modules. The sensor can be easily interfaced with any acquisition system which allows to calculate the value of VWC implementing equations by approximation.

SUT?Soil Moisture Sensor?Highlighted specs
? High precision soil moisture sensor no conductivity based
? Measures volumetric water content (VWC)
? Insensitive to salinity and no corrode over time
? Easy to install and with low weight
? According to WMO standards
? Supplied with calibration report
? Maintenance and re-calibration not required
? According to CE?norms

SUT?Soil Moisture Sensor ?Technical Data

Measuring range
0 ~?100% VWC (volumetric water?content)
Accuracy
± 6% VWC, greater accuracy on specific request for calibration
Time constant
1 sec (medium time)
Working temperature
-40 ~ 60°C
Standard signal output
4 ~ 20mA 2-wire loop, ( 0 ~ 2Vdc or RS485/Modbus with MCS module)
Protections
polarity reverse and transient
Made of
Body in resin, copper electrodes
Power Consumption
10 ~ 30 Vdc; 5mA@12Vdc (typical)
Weight
<50g
Dimensions
90x18mm

SUT?Soil Moisture Sensor Order Form
Sensor
Soil moisture sensor (volumetric content)
SUT

A
B
C




05
10
xx







ZBS1a
Out 0 ~ 2Vdc (MCS option)
4 ~ 20mA
RS485 Modbus (MCS option)?
Accessories
CS05 – Cable 5m sensor-datalogger
CS10 – Cable 10m sensor-datalogger
CSxx – Cable xx* m length sensor-datalogger
ZBS1a - Single-channel ZigBee radio

Example of order code
SUT
B 10 ZBS1a

* specify the length for no standard measures
