Three-in-one Insertion Flow Meter - VPFlowScope M

? Three sensors in one instrument
? For compressed air and technical gases
? Ultra compact size and low weight
? Ethernet (Modbus/ TCP)
? RS485 (Modbus RTU)
? 4 … 20 mA linearized, pulse mode or alarm output
? Optional TFT color display

  • Model Number: VPFlowScope M
  • Data Sheet: Date Sheet File
Quantity:
- +

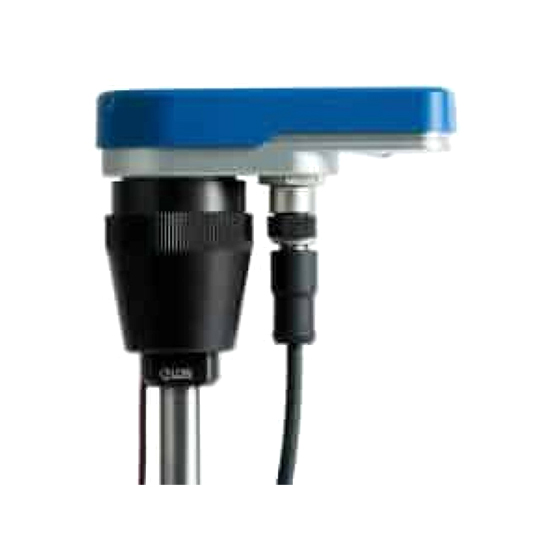

  •  Three-in-one Insertion Flow Meter
  •  Three-in-one Insertion Flow Meter
  •  Three-in-one Insertion Flow Meter
Mouse over image to zoom
Share:

Product Specification

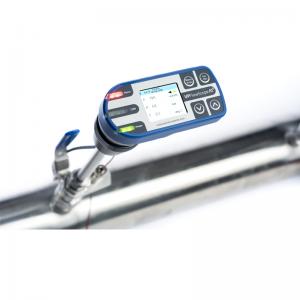

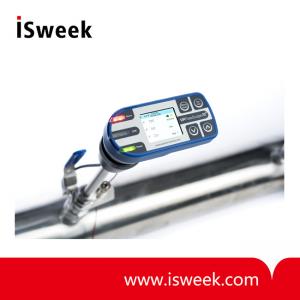

VPFlowScope M Three-in-one Insertion Flow Meter Description
The VPFlowScope M is a three in one insertion flow meter for compressed air and technical gases. It can be installed under pressure and measures flow, pressure and temperature simultaneously. With the introduction of the VPFlowScope M, recalibration becomes history.

Unlike traditional flow meters, the VPFlowScope M does not require traditional recalibration, where you have to ship the unit back. Instead, the VPFlowScope M consists of a transmitter and the patented VPSensorCartridge? which reduces recalibration to a simple exchange.

VPFlowScope M Three-in-one Insertion Flow Meter Features and benefits
? Three sensors in one instrument
? For compressed air and technical gases
? Patented VPSensorCartridge?: no more recalibration required
? Ethernet interface: Industry 4.0/IOT ready
? Ultra compact size and low weight
? Ethernet (Modbus/ TCP)
? RS485 (Modbus RTU)
? 4 … 20 mA linearized, pulse mode or alarm output
? USB interface for configuration and downloading of data log files
? Optional TFT color display
? Optional data logger with more than 6 months @ 1 second interval + cyclic recording
? Bi-directional (optional)

VPFlowScope M Three-in-one Insertion Flow Meter Applications
? Compressed air audits
? Nitrogen and technical gas flow measurements
? Cost allocation
? Leak detection
? Pipe network optimization
? Permanent monitoring

Specifications VPFlowScope M transmitters

Sensor interface

VPSensorCartridge
Proprietary interface, rotational 360 degrees


Display

Display type
1.8" TFT color with auto power save (option)
LED status
LED indicators on all models for power, communication and alarm


Data logger

Memory
At least 6 months @ 1 x per second logging interval for all parameters
Logging mode
Cyclic and start/stop


Outputs

RS485
Modbus RTU
Analogue output
4..20mA output or pulse or alarm (selectable)
USB
Mini USB, behind o-ring sealed cap for configuration
Ethernet
Communication via Modbus TCP and access to built in web server
Wi-Fi
Communication via Modbus TCP and access to built in web server
Wi-Fi radio
2.4GHz 802.11 b/g/n channel 3
Wi-Fi output power
+15dBm (max)


Mechanical & Environmental

Dimensions
50 x 108 x 36 mm | 1.97 x 4.25 x 1.42 inch
Weight
220 grams | 7.76 ounces including locking ring
Material
Aluminium, anodized body with polycarbonate cover
O-ring seals
NBR
Protection grade
IP65 | NEMA 4 when mated to VPSensorCartridge and USB cap tightened
Ambient temperature
0..60°C | 32 .. 140°F
Ambient humidity
10 - 95%. Avoid condensation at all times


Avoid direct sunlight or radiant heat
Highly corrosive or acid environments should be avoided


Electrical

Supply
12VDC ..24 VDC +10% CLASS 2 (UL)
Power consumption
1 Watt (no flow) 3.5 Watt (full flow) +/- 10%


Certification

CE
EN 60950-1, EN 61326-1, EN 61000-3-2, EN 61000-3-3, EN 61326-1
UL
UL 508

Specifications VPFlowScope M VPSensorCartridges
Flow sensor

Measuring principle
Thermabridge? Thermal Mass Flow sensor
Flow range
0(0.5) ... 150 m n/sec | 0 ... 500 sfps
Bi-directional flow
Optional
Accuracy
2% of reading under calibration conditions
Reference conditions
0 °C, 1013.25 mbar | 32 °F, 14.65 psi
Gases
Compressed air, Nitrogen and inert, non condensing gases
Gas temperature range
0 ... 60 °C | 0 ... 140 °F


Pressure sensor

Pressure range
0 ... 10 bar | 0 ... 145 psi gage
Accuracy
+/- 1% FSS (total error band)
Temperature compensated


Mechanical & Environmental

Probe Length
340 mm | 13.4"
Weight
200 grams | 7.05 ounces
Process connection
Compression fitting, 1/2" NPT, Tapered
Pressure rating
PN10
Protection grade
IP65 | NEMA 4 when mated to transmitter
Ambient temperature range
0...60 °C | 32...140 °F, avoid direct sunlight or radiant heat
Wetted materials
Anodized Aluminum, Stainless steel 316, Glass, Epoxy
Corrosion resistance
Highly corrosive or acid environments should be avoided


Electrical

Connection type
VPSensorCartridge proprietary
Power consumption
See transmitter specifications for combined power consumption

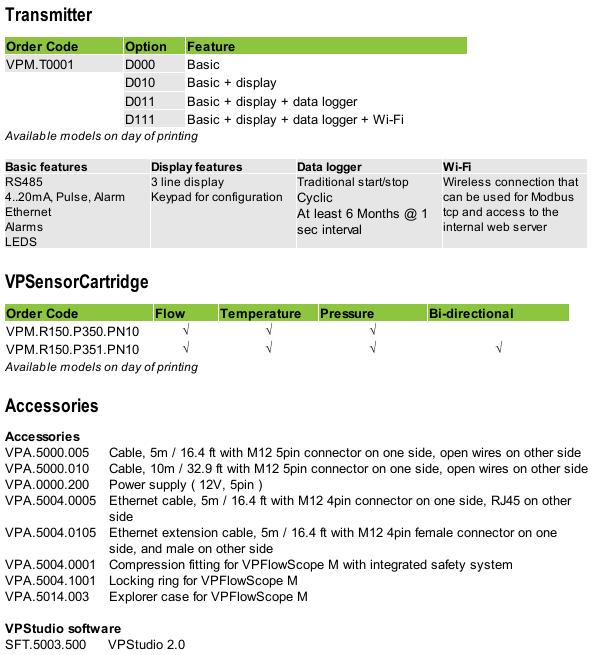

VPFlowScope M Three-in-one Insertion Flow Meter Order information and accessories
