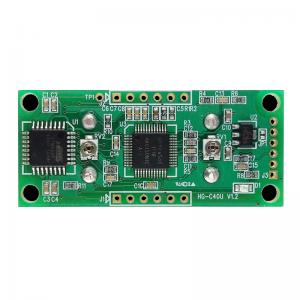

Ultrasonic Range Finder Sensor & Module (UART) (Conventional) - HG-C40U
? Communication: UART(TTL)
? Input Voltage 5V, 12V(default)
? Current Consumption: 20mA(Typ) ~ 30mA(Max)
? Frequency: 40kHz
? Max. distance: 3.5m (at 5V); 5m (at 12V)
? Min. distance: 2cm
? Resolution: 5mm
- Quantity:
- - +
Product Specification
HG-C40U Ultrasonic Range Finder Sensor & Module Description
? ATmega 8 MCU
? Measures distance from the obstacle and sends the data using UART communication.
? Within 5mm Resolution
? Optional two transmitting mode for various use.
- Free Run : With a power supply, sensor transmits trigger and burst signal by itself (for basic application)
- External Trigger : External system(controller or processor circuit) controls the trigger signals – for advance application
? Two types of input power – Low(5V) for processor circuit usage and High(12V) for controllers. ※ Factory Default : 12V
? Various Setting Option
- Free Run / UART Trigger / External Trigger setting
- Ring buffer use or not use setting
- UART communication baudrate setting
- Free Run Trigger interval
? Output Signal
- Distance Data using UART(ASCII, mm)
- Real time ultrasonic wave amplified from actually received ultrasonic.
- Real time TTL level square signal(Square Wave) of detection signal.
? High performance ASIC Chip for stable transmission and sensitive reception.
? Sensor to PC communication using ‘Interface Board’(RS232, Power regulator)
? Data display using monitor program from PC(Hyperterminal available)
HG-C40U Ultrasonic Range Finder Sensor & Module Specification
Communication |
UART(TTL) |
Input Voltage |
5V, 12V(default) |
Current Consumption |
20mA(Typ) ~ 30mA(Max) |
Frequency |
40kHz |
Max. distance |
3.5m (at 5V) 5m (at 12V) |
Min. distance |
2cm |
Resolution |
5mm |
Size |
Module : 50x22x25(mm) Sensor : Φ16 |
