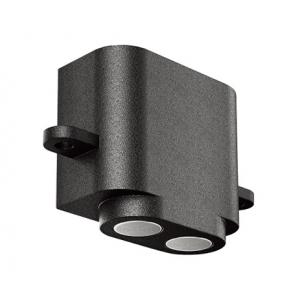

Ultrasonic Rangefinder - UM0034-002
Intelligent garbage can
Intelligent water dispenser
Intelligent liquid level detection system
- Model Number: UM0034-002
- Quantity:
- - +
Mouse over image to zoom
Product Specification
UM0034-002 Ultrasonic Rangefinder Summary:
The ultrasonic rangefinder measures the time interval between emitting the ultrasonic pulses and receiving the echo to determine the distance to nearby objects.
UM0034-002 Ultrasonic Rangefinder Features：
Small size， easy to install
Intelligent and accurate measurement
Small blind zone, high sensitivity
Good anti-interference ability
UM0034-002 Ultrasonic Rangefinder Applications：
Intelligent garbage can
Intelligent water dispenser
Intelligent liquid level detection system
UM0034-002 Ultrasonic Rangefinder Specification：
| NO. | Item | Specification |
| 1 | Model | UM0034-002 |
| 2 | Range of measurement | 20~1200mm |
| 3 | Accuracy | ±10mm |
| 4 | Response time | ＜1ms |
| 5 | Rated working voltage | DC 5V |
| 6 | Working current | ≤ 9mA |
| 7 | Working temperature | 0℃~+80℃ |
