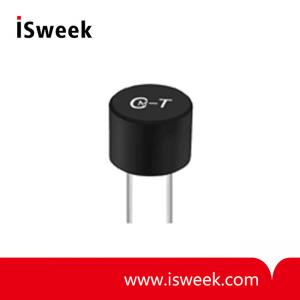

Ultrasonic Sensors - MA300D1-1
1. Short ringing time
2. Wide bandwidth & quick response
- Model Number: MA300D1-1
- Data Sheet:
- Quantity:
- - +
Product Specification
MA300D1-1 Ultrasonic Sensors Specifications:
|
Operating Temperature Range |
-20℃ to 70℃ |
|
Construction |
High frequency type |
|
Center Frequency |
300kHz |
|
Overall Sensitivity |
1.5~4.0Vp-p |
|
Directivity |
5deg.(Reference Value) |
|
Capacitance |
1300pF |
|
Capacitance Tolerance |
±20% |
|
Max. Input Voltage |
50Vp-p Drive wave number:5 cycles, Drive cycle:300Hz |
MA300D1-1 Ultrasonic Sensors Features:
1. Short ringing time
2. Wide bandwidth & quick response
MA300D1-1 Ultrasonic Sensors Applications：
|
Other Usage |
Double feed detection for papers or banknotes |

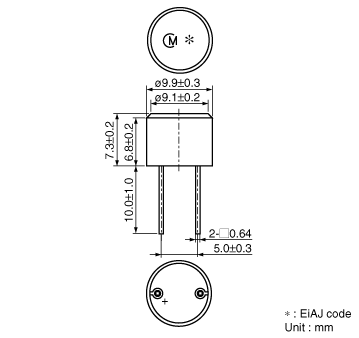

MA300D1-1 Ultrasonic Sensors Dimensions：
