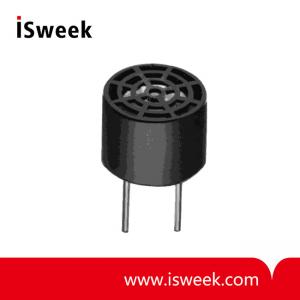

Ultrasonic Sensors - MA40S4S

1. Compact and light weight.
2. High sensitivity and sound pressure.

  • Model Number: MA40S4S
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Ultrasonic Sensors
Mouse over image to zoom
Share:

Product Specification

MA40S4S Ultrasonic Sensors Specifications:

Operating Temperature Range

-40℃ to 85℃

Construction

Open type

Center Frequency

40kHz

S.P.L.

120dB typ. (0dB=0.02mPa)

Directivity

80deg. (typ.)

Capacitance

2550pF

Capacitance Tolerance

±20%

Max. Input Voltage

20Vp-p Continuous signal, Square wave



MA40S4S Ultrasonic Sensors Features:

1. Compact and light weight.

2. High sensitivity and sound pressure.



MA40S4S Ultrasonic Sensors Applications

Automotive Usage

Infotainment

Other Usage

1.Obstacle detection in home

2.Distance measurement

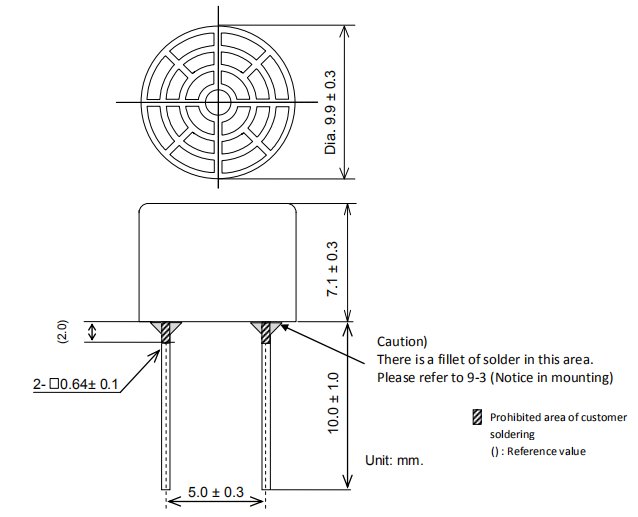

MA40S4S Ultrasonic Sensors Dimensions
