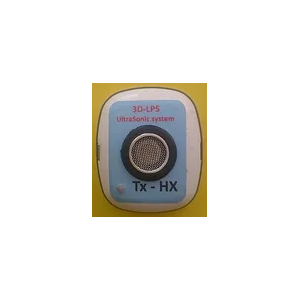

Ultrasonic transducer - tx-HX
Ultrasonic Position Transmitter Tx, Radio Frequency 2.4-2.523GHz
- Model Number: tx-HX
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Tx-HX Ultrasonic transducer describe：
Ultrasonic Position Transmitter Tx, Radio Frequency 2.4-2.523GHz, RF user com channels 125, communication 250Kbaud. Ultrasonic waves 40KHz, speed 344m/sec. Long range positioning up to 20 meters. The distance to the Ultrasonic Transmitter is measured with a resolution of 1mm.. Ultrasonic Transducer Aluminum Housing. Power Supply 4-7 Vdc. In Syncronization mode Blue LED flashes. Enclosure size 76x54x22mm, Weight 70g, IP40. Cable lenght 80cm USB typeA MASC connector.
