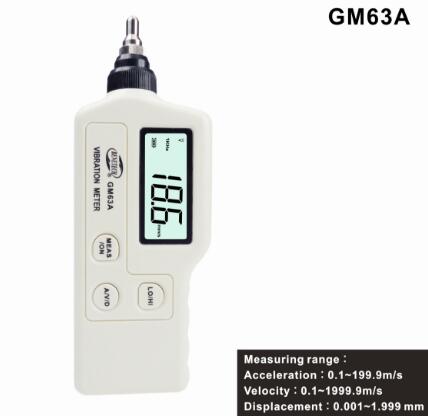

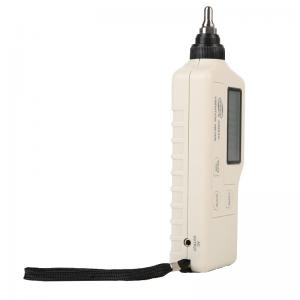

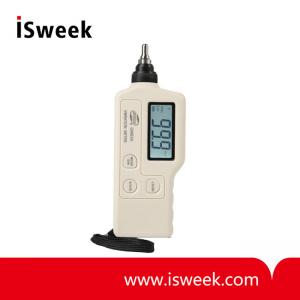

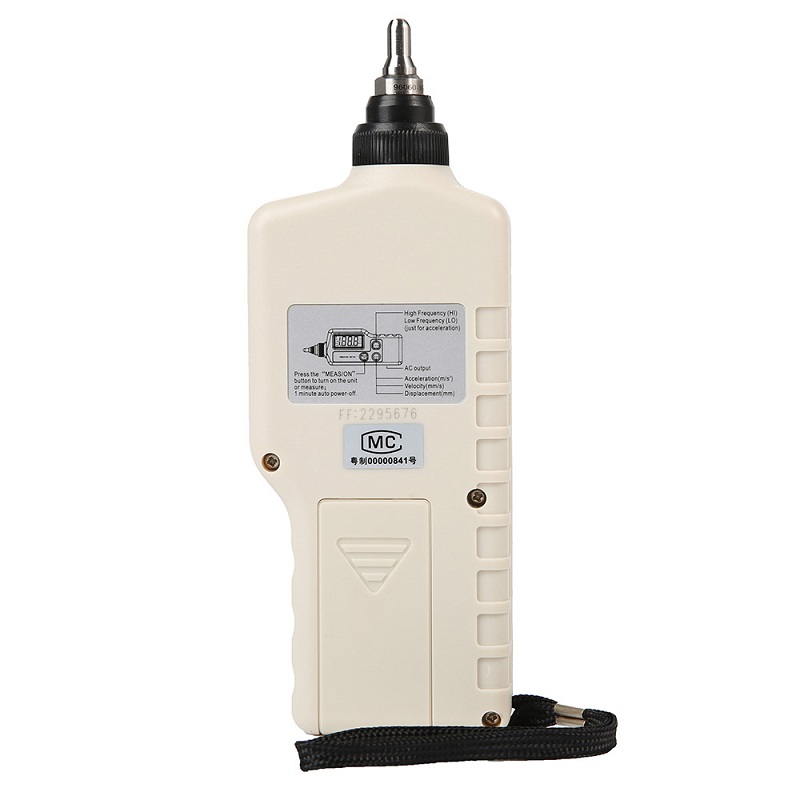

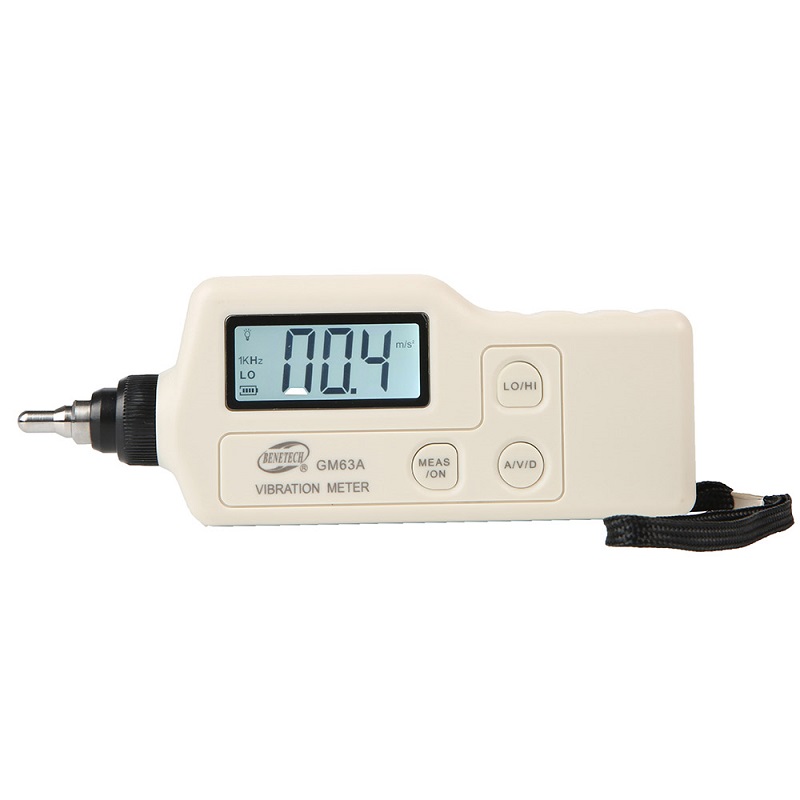

Vibration Meter - GM63A

? Measuring range:
Acceleration: 0.1~199.9m/s2 peak
Velocity: 0.1~199.9m/s rms
Displacement: 0.001~1.999 mm (P-P)
? Accuracy: ±5%H±2digits
? LCD display: 3 1/2 digits display
? Data output: AC output 2 V peak (display full scale)
? Operation temperature range: 0~40℃
? Operating humidity range: 30~90%RH

Model Number: GM63A
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM63A Vibration Meter Introduction
This product adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.

GM63A Vibration Meter Features
? Simple to use, the structure is compact, portable for carrying along with measurement.
? Visually display measurement value and state.
? Acceleration, velocity and displacement measurement.
? Different vibration frequency selection.
? High sensitivity probe for accurate measurement Provides long and short probe head ,each one is suitable for different situation measurement.
? Equipped with AC signal output interface.
? Low power indication.
? Auto power-off.
? LCD backlight.

GM63A Vibration Meter Specifications

Technical parameter	Technical specification
Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration	0.1~199.9m/s² peak
Measurement range of velocity	0.1~199.9mm/s rms
Measurement range of displacement	0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s²
Measurement accuracy	±5%±2digits
Measurement frequency range of acceleration	10Hz ~ 1KHz (LO) 1KHz ~ 15KHz (HI)
Measurement frequency range of velocity	10Hz ~ 1KHz (LO)
Measurement frequency range of displacement	10Hz ~ 1KHz (LO)
Displays update cycle	1 second
LCD display	3 1/2 digits display
Single output	AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones can be connected
Power supply	9V Alkaline battery
Static current	≤20μA
Operating current	≤25mA
Battery life	20 hours continuous use
Auto power-off	Turns off automatically in 60 seconds
LCD backlight	7 seconds
Operating temperature range	0~40℃
Operating humidity range	30~90%RH
Low battery indication	6.9V±0.2V
Dimensions	67x30x183mm
Weight	182g ( including battery)
