XL-MaxSonar-AE Series Ultrasonic Rangefinders MB1300, MB1310, MB1320, MB1330 - MB1340, MB1360, MB1361

Product Specification

XL-MaxSonar-AE Series
High Performance Sonar Range Finder
MB1300, MB1310, MB1320, MB1330, MB1340, MB1360, MB1361

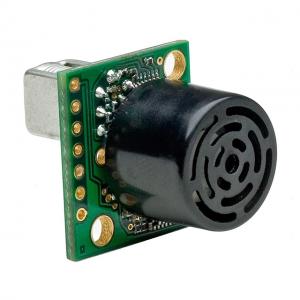

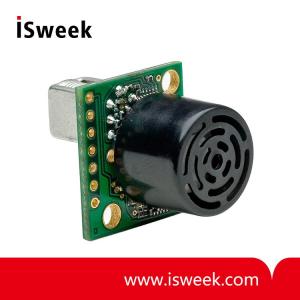

XL-MaxSonar-AE Series Ultrasonic Rangefinders Product Description
The XL-MaxSonar-AE sensors have a low power requirement of 3.3V - 5.5V and operation provides very short to long-range detection and ranging, in a tiny and compact form factor.

The MB1300 sensor series detects objects from 0-cm 1 to 765-cm (25.1 feet) or 1068cm (35 feet) (select models) and provide sonar range information from 20-cm out to 765-cm or 1068-cm (select models) with 1-cm resolution. Objects from 0-cm to 20-cm typically range as 20-cm. The interface output formats included are real-time analog voltage envelope, analog voltage output, and serial digital output.

XL-MaxSonar-AE Series Ultrasonic Rangefinders Features
? High acoustic power output
? Real-time auto calibration and noise rejection for every ranging cycle
? Calibrated beam angle
? Continuously variable gain
? Object detection as close as 1-mm from the sensor
? 3.3V to 5.5V supply with very low average current draw
? Readings can occur up to every 100mS, (10-Hz rate)
? Free run operation can continually measure and output range information
? Triggered operation provides the range reading as desired
? Real-time analog envelope
? All interfaces are active simultaneously
? Sensor operates at 42KHz
? Serial, 0 to Vcc, 9600Baud, 81N
? Analog, (Vcc/1024) / cm
? Analog, (Vcc/1024 / 2cm

XL-MaxSonar-AE Series Ultrasonic Rangefinders Benefits
? Acoustic and electrical noise resistance
? Reliable and stable range data
? Low cost
? Quality controlled beam characteristics
? Very low power ranger, excellent for multiple sensor or battery based systems
? Ranging can be triggered externally or internally
? Sensor reports the range reading directly, frees up user processor
? Fast measurement cycle
? User can choose any of the sensor outputs
? Easy mounting
? No power up calibration required
? Perfect for objects may be directly in front of the sensor during power up

XL-MaxSonar-AE Series Ultrasonic Rangefinders Applications and Uses
? Bin level measurement
? Proximity zone detection
? People detection
? Robot ranging sensor
? Autonomous navigation
? Environments with acoustic and electrical noise
? Multi-sensor arrays
? Distance measuring
? Long range object detection
? Users who prefer to process the analog voltage envelope (MB1300 series)
? -40°C to +65°C operation (+85°C limited operation) (40°C to 0°C recommended operation in environments that are non-frosting, non-condensation, and indoor only)

XL-MaxSonar-AE Series Ultrasonic Rangefinders Part Numbers

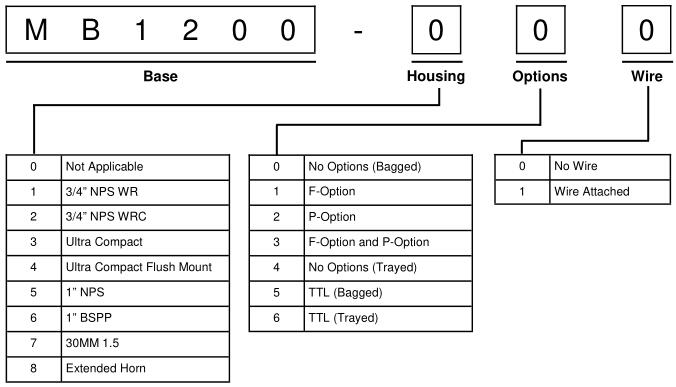

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

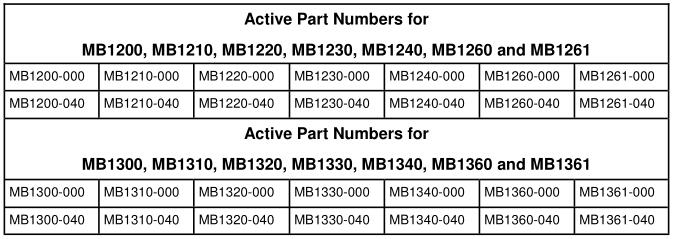

The following table displays all of the active and valid part numbers for this product.
