XL-MaxSonar-EZ2 High Performance Ultrasonic Rangefinder - MB1220

? Resolution of 1 cm
? 10Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Virtually no dead zone, objects closer than 20 cm range as 20 cm
? Operates from 3.3-5.5V
? Low 3.4mA average current requirement
? Operational Temperature from 0℃ to +65℃ (32 to +149℉)
? Maximum range of 765 cm (300 inches)

  • Model Number: MB1220
  • Data Sheet: Date Sheet File
Quantity:
- +

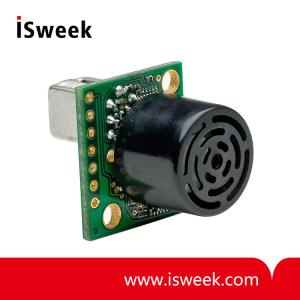

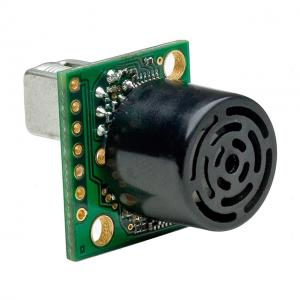

  • XL-MaxSonar-EZ2 High Performance Ultrasonic Rangefinder
  • XL-MaxSonar-EZ2 High Performance Ultrasonic Rangefinder
Mouse over image to zoom
Share:

Product Specification

MB1220 XL-MaxSonar-EZ2
High Performance Ultrasonic Rangefinder


MB1220 XL-MaxSonar-EZ2 Ultrasonic Rangefinder Product Description

The XL-MaxSonar-EZ2 is our most recommended indoor sensor. It offers the best balance between wide or narrow beams and provides a good balance between small and large target detection. The XL-MaxSonar-EZ2 works for nearly all indoor applications including: people detection, large-target detection, long-range detection, applications requiring high noise tolerance.

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL-MaxSonar-EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

MB1220 XL-MaxSonar-EZ2 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 cm
? 10Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no dead zone, objects closer than 20 cm range as 20 cm
? Operates from 3.3-5.5V
? Low 3.4mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Operational Temperature from 0℃ to +65℃ (32 to +149℉)
? Real-time automatic calibration (voltage, humidity, ambient noise)
? Firmware filtering for better noise tolerance and clutter rejection
? 200,000+ Hours Mean Time Between Failure
? Balanced design gives both high sensitivity and noise tolerance
? Our most recommended sensor from the XL-MaxSonar-EZ sensor line
? Maximum range of 765 cm (300 inches)
? Hardware gain of 1000
? Medium range, medium detection zone for small targets

MB1220 XL-MaxSonar-EZ2 Ultrasonic Rangefinder Features and Benefits
Recommended for users unsure of which sensor to use in their application
Low power consumption
Easy to use interface
Good balance of sensitivity and side object rejection
Can detect people up to approximately 10 feet
3.3v to 5.5v operational voltage

MB1220 XL-MaxSonar-EZ2 Ultrasonic Rangefinder Applications and Uses
Great for people detection
Security
Motion detection
Landing flying objects
Used with battery power
Autonomous navigation
Educational and hobby robotics
Collision avoidance

MB1220 XL-MaxSonar-EZ2 Ultrasonic Rangefinder Part Numbers

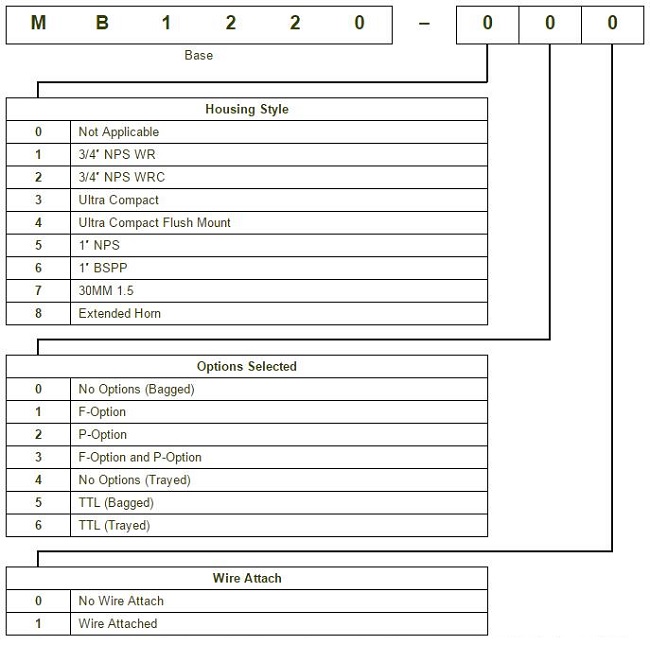

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
MB1220-000
MB1220-040
