XL-TrashSonar-WR Series High Performance Ultrasonic Trash Sensors - MB7137, MB7138, MB7139

Product Specification

XL-TrashSonar-WR Series
IP67 Weather Resistant, Ultrasonic Trash Sensor
MB7137, MB7138, MB7139

XL-TrashSonar-WR Series Ultrasonic Trash Sensor Product Description

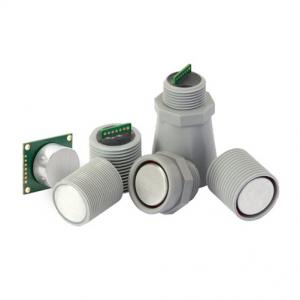

The XL-TrashSonar-WR sensor series provide users with robust range information in air. These sensors also feature high-power acoustic output along with real-time auto calibration for changing conditions (supply voltage sag, acoustic noise, or electrical noise), operation with supply voltage from 3.0V to 5.5V, object detection from 0-cm to 350-cm, and sonar range information from 20-cm out to 350-cm with 1-cm resolution. Objects from 0-cm to 20-cm typically range as 20-cm. ( 25cm for the MB7138) The sensor is housed in a robust PVC housing, designed to meet the IP67 water intrusion standard. This sensor line is available in the following package types — 3/4" PVC threading, 1" NPS pipe threading, 1" BSPP pipe threading, and 30mm 1.5 pipe threading.

The user interface formats included are pulse-width, analog voltage output, RS232 serial output, and I2C (MB7137).

XL-TrashSonar-WR Series Ultrasonic Trash Sensor Features
? Real-time auto calibration and noise rejection
? High acoustic power output
? Precise narrow beam
? Object detection includes zero range objects
? 3V to 5.5V supply with very low average current draw
? Free run operation can continually measure and output range information
? Triggered operation provides the range reading as desired
? All interfaces are active simultaneously
? RS232 Serial, 0 to Vcc, 9600 Baud, 81N (MB7138, MB7139)
? I2C Bus operates up to 400KHz with clock stretching (MB7137)
? Analog, (Vcc/1024) / cm (MB7138, MB7139)
? Sensor operates at 42KHz

XL-TrashSonar-WR Series Ultrasonic Trash Sensor Benefits
? Acoustic and electric noise resistance
? Reliable and stable range data
? Robust, low cost IP67 standard sensor
? Narrow beam characteristics
? Very low power excellent for battery based systems
? Ranging can be triggered externally or internally
? Sensor reports the range reading directly, frees up user processor
? Easy hole mounting or mating with standard electrical fittings
? Filtering allows very reliable operation in most environments

XL-TrashSonar-WR Series Ultrasonic Trash Sensor Applications & Uses
? Tank level measurement
? Bin level measurement
? Trash level measurement
? Environments with acoustic and electrical noise
? Distance measuring
? Long range object detection
? Industrial sensor
? -40°C to +65°C operation

XL-TrashSonar-WR Series Ultrasonic Trash Sensor Part Numbers

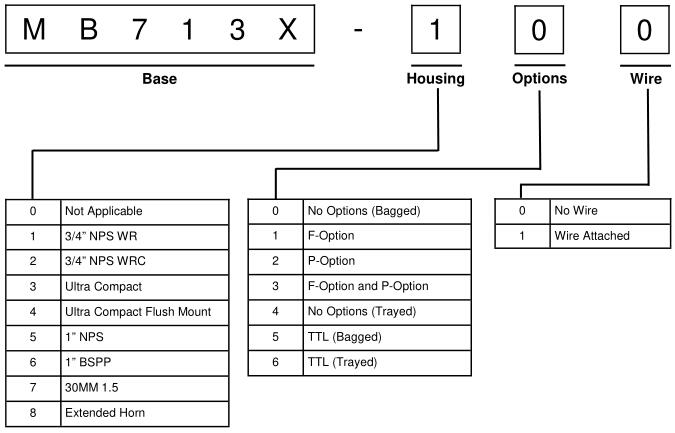

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

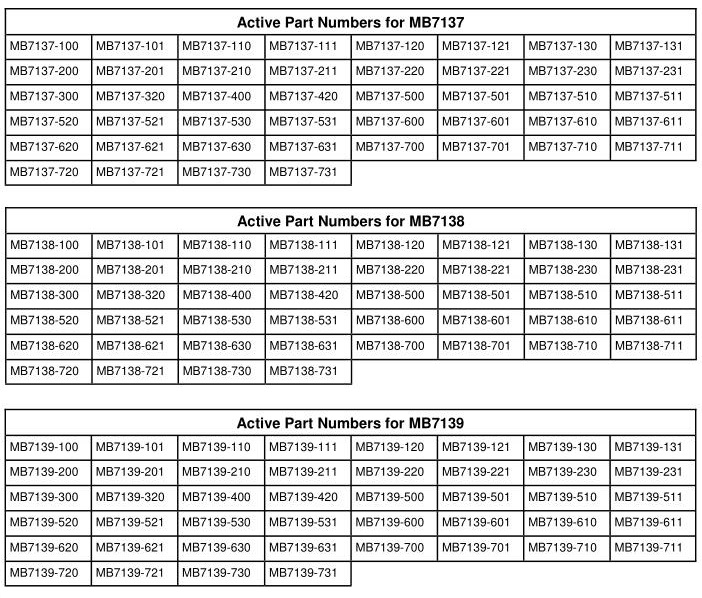

The following tables display all of the active and valid part numbers for these products.
