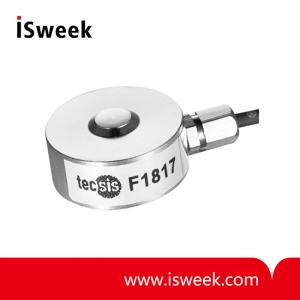

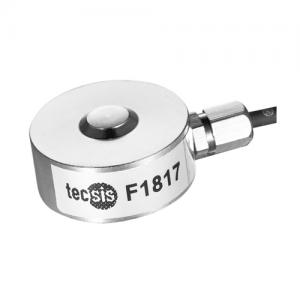

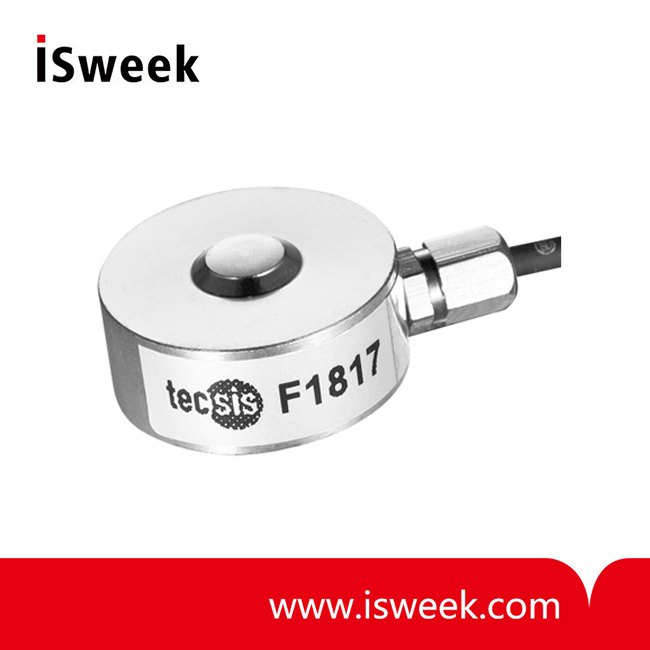

5kg to 1t Compression Load Cell - F1817

? capacities range from 5Kg to 1t
? Rated output: 1.5±10% mV / V
? Zero balance: ±2 % F.S.
? Non-linearity: ≤1 % F.S.
? Hysteresis: 0.25 % F.S.
? Repeatability: 0.25% F.S.
? Operation temp range: -20 ~ 80°C
? Protection class: IP64

Model Number: F1817
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

F1817
Compression Load Cell

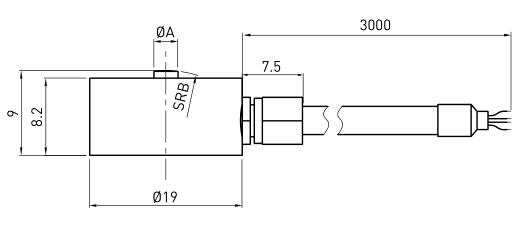

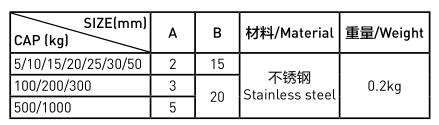

F1817 Compression Load Cell Size and Capacity

F1817 Compression Load Cell Features & Applications
? Stainless steel miniature type load cell.
? Designed for low profile compression service.
? Its capacities range from 5Kg to 1t .
? It comes complete with 1.5m of load cell cable.
? Diameter 19mm, height 9mm.
? Customizable.
? The protection class is IP66.
? It is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space.

F1817 Compression Load Cell Technical Parameters

Specifications	Technique
Rated output	1.5±10% mV / V
Zero balance	±2 % F.S.
Non-linearity	≤1 % F.S.
Hysteresis	0.25 % F.S.
Repeatability	0.25% F.S.
Temp.effect on output	0.36 % F.S. / 10°C
Temp.effect on zero	0.18 % F.S. / 10°C
Input impedance	350±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5 V
Maximum excitation	10 V
Compensated temp range	- 10 ~ 60°C
Operation temp range	- 20 ~ 80°C
Safe overload	120% F.S.
Ultimate overload	200 % F.S.
Cable size	?2×3000 mm
Protection class	IP64
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
