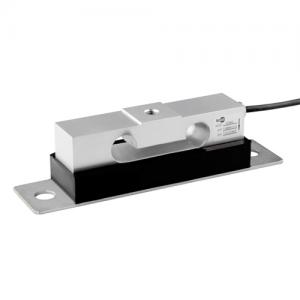

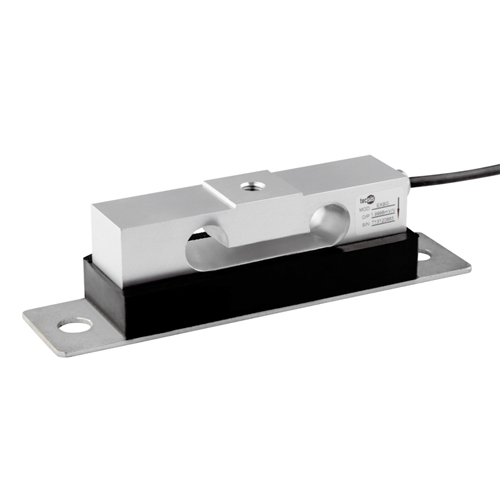

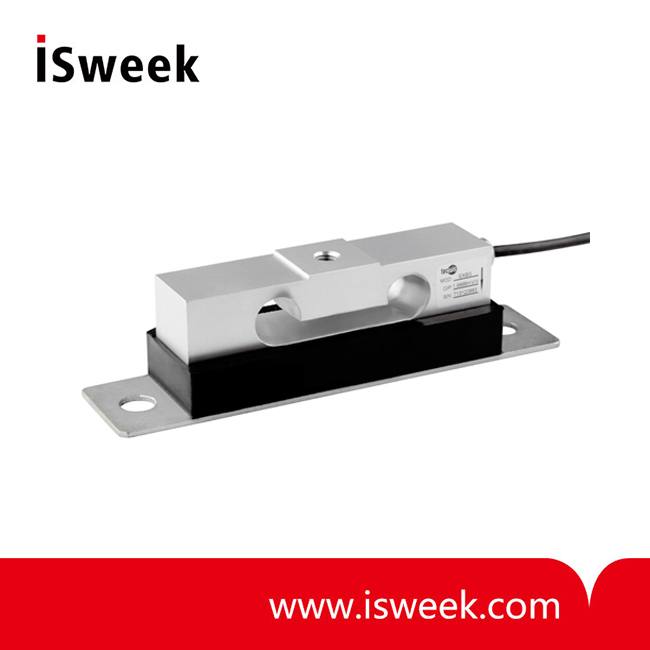

800kg Single Point Parallel Beam Load Cell - F9807
? Available in the capacities 800kg
? Rated output: 2.0±10% mV / V
? Non-linearity: 0.05% F.S.
? Hysteresis: 0.05% F.S.
? Repeatability: 0.05% F.S.
? Single point parallel beam load cell
? Made of anodized aluminum and rubber materials
? Shock-proof design, IP65 protection
- Model Number: F9807
- Data Sheet:
- Quantity:
- - +
Product Specification
F9807
Single Point Parallel Beam

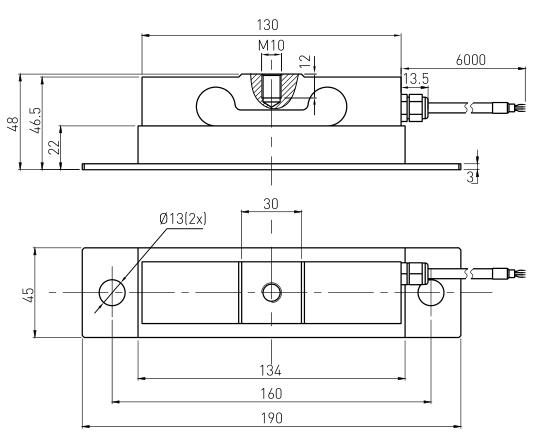

F9807 Single Point Parallel Beam Load Cell Size and Capacity
F9807 Single Point Parallel Beam Load Cell Features & Applications
? Single point parallel beam load cell
? Made of anodized aluminum and rubber materials
? Shock-proof design, IP65 protection
? Mainly used for elevator overload monitoring
F9807 Single Point Parallel Beam Load Cell Technical Parameters
|
Specifications |
Technique |
|
Rated output |
2.0±10% mV / V |
|
Non-linearity |
0.05% F.S. |
|
Hysteresis |
0.05% F.S. |
|
Repeatability |
0.05% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp.effect on output |
0.025% F.S. / 10°C |
|
Temp.effect on zero |
0.025% F.S. / 10°C |
|
Input impedance |
410±30Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/100VDC |
|
Recommended excitation |
10V |
|
Compensated temp range |
-10~40 oC |
|
Operation temp range |
-20~60oC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
250% F.S. |
|
Cable size |
?5×6000 mm |
|
Protection class |
IP65 |
|
Cable color code |
Input: Red(+) Black(-);
|
