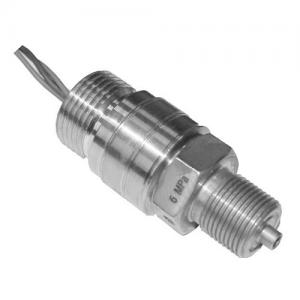

Absolute Pressure Microelectronic Transducers 0~10MPa, -40℃~+120℃ - MIDA-MA-70

Pressure range 0~10MPa
Operating temperature range -40℃~+120℃
high accuracy, high stability
wear resistance, impact resistance and anti-corrosion
Accuracy: ±0,1% (0,2) of output signal variation range
Supply voltage: 5-15 VDC

Model Number: MIDA-MA-70

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Absolute Pressure Microelectronic Transducers MIDA-MA-70 Features:

Pressure range 0~10MPa

Operating temperature range -40℃~+120℃

high accuracy, high stability

wear resistance, impact resistance and anti-corrosion

Absolute Pressure Microelectronic Transducers MIDA-MA-70 Specification

Applications	Industrial instrumentation & process control systems
Measured medium	Liquids and gases compatible with titanium alloys and stainless steels
Pressure range, MPa	0-0,04…. - 0-10
Accuracy (comb. L.H.R), no more than, ±%	0,1 (0,2) of output signal variation range
Zero output (at temperature of 20℃), mV/V	± 0,2 with accuracy 0,1%; ± 0,3 with accuracy 0,2%; ± 0,5 within pressure range 0-0,006
Output range, mV/V	5 ± 0,2 with accuracy of 0,1%; 5 ± 0,3 with accuracy of 0,2%; 3± 0,2 within pressure range 0-0,01 MPa 1,5 ± 0,2 for 0-0,006 MPa range with accuracy 0,1%; 1,5 ± 0,3 for 0-0,006 MPa range with accuracy 0,2%
Operating temperature range, °С	-40 ...+120
Compensation temperature range, °С	-40 ...+120
Additional temperature error in compensated temperature range, % of zero output, no more than	2 with accuracy of 0,1%; 3 with accuracy of 0,2%; 3 for 0-0,006 MPa range with accuracy of 0,1%; 4,4 for 0-0,006 MPa range with accuracy of 0,2%
Supply voltage, V	5-15 DC
Overpressure, no more than	2 Pnom for ranges from 0-0,006 to 0-2,5 MPa; 1,5 Pnom for ranges from 0-4 to 0-60 MPa; 1,25 Pnom for ranges from 0-100 to 0-160 MPa
Insulation resistance	Not less than 100 MOhm at voltage of 500 V DC
