High-temperature Gage Pressure Transmitters 0-160MPa - MIDA-SG-12-12-H

Standard ranges 0-160MPa
Operating temperature range:
-40 ... +300℃ - for A-zone;
-40…+200℃ - for B-zone;
-40…+80℃ - for electronics ambient temperature (C-zone)
Accuracy no more than: ±0,25%?; ±0,5?%
Supply voltage: 12 ... 36V depending on loads resistance
Ingress protection: IP64

  • Model Number: MIDA-SG-12-12-H
Quantity:
- +
  • High-temperature Gage Pressure Transmitters 0-160MPa
Mouse over image to zoom
Share:

Product Specification

High-temperature Gage Pressure Transmitters MIDA-SG-12-12-H

SG-12-12-H is based on Russia advanced titanium / silicon - sapphire pressure sensor and transmitter circuits.

It is with wide pressure range, wide temperature range, high stability, wear resistance, impact resistance and anti-corrosion and other prominent features. Moreover it can steadily work in cold regions and high temperature rigions for long time.


High-temperature Gage Pressure Transmitters MIDA-SG-12-12-H Specification

Applications Industrial instrumentation, process & measure control systems for high-temperature liquids and gases
Measured medium High-temperature liquids and gases compatible with titanium alloys and stainless steel
Standard ranges, MPa
0-0,01… - 0-160
Output signal (wires) 4-20 mA (2-wire)
Operating temperature range, -40 ... +300 - for A-zone;
-40…+200 - for B-zone;
-40…+80 - for electronics ambient temperature (C-zone)
Compensated temperature range of output signal,  +20…+150;
+20…+300
Overall accuracy in compensated temperature range, no more than ±%
1,0
Accuracy (comb. L.H.R), no more than ±%
0,25; 0,5
Supply voltage, V 12 ... 36 depending on loads resistance
Consumed current, no more, mA 20,2
Type and marking of intrinsic safety
0ExiaIICT2
Ingress protection IP64
Climatic modification UHL**3.1
Mechanical stability V3
Electrical connection Sealing gland straight (S) and angle (A); plug/socket (P)
Pressure port М20 x 1,5; М12 x 1,5 (up to 50 MPa
Weight no more than, kg 0,5
Specifications ТУ4212-043-18004487-2003
Number in the State Register of measuring devices of the Russian Federation
17635-03

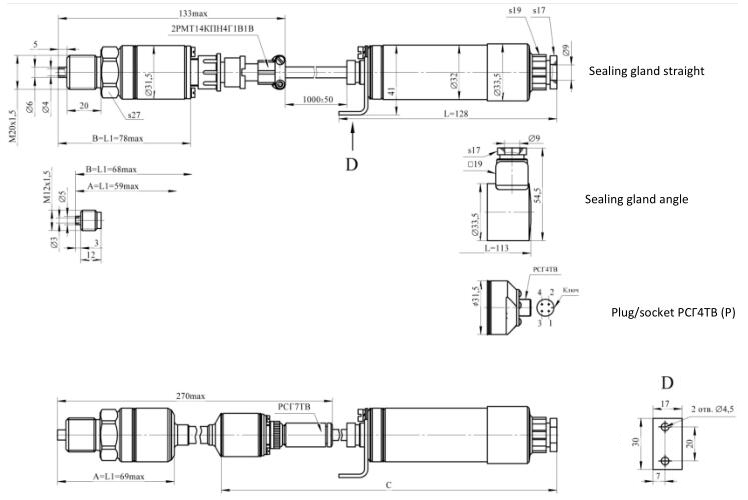

High-temperature Gage Pressure Transmitters MIDA-SG-12-12-H Overall and mounting dimensions
