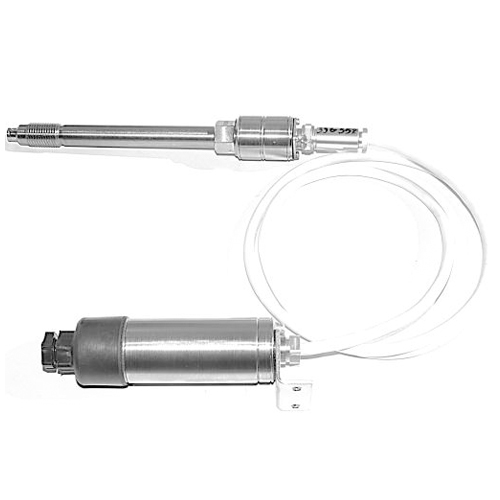

High-temperature Gage Pressure Transmitters 0-60MPa - MIDA-SG-12-082-C

Standard ranges 0-60MPa
Operating temperature range:
-40 ... +300 - for A-zone;
40…+80 - for electronics ambient temperature (C-zone)
Overall accuracy in compensated temperature range no more than: ±0,5?%
Supply voltage: 12 ... 36V depending on loads resistance
Ingress protection: IP64

  • Model Number: MIDA-SG-12-082-C
Quantity:
- +
  • High-temperature Gage Pressure Transmitters 0-60MPa
Mouse over image to zoom
Share:

Product Specification

High-temperature Gage Pressure Transmitters 0-60MPa MIDA-SG-12-082-C

SG-12-082-C is based on Russia advanced titanium / silicon - sapphire dry flat membrane pressure sensor and advanced analog circuit. It is with wide pressure range, wide temperature range, high stability, wear resistance, impact resistance and anti-corrosion and other prominent features.


Moreover, it is easy cleaning and can be used for Industrial instrumentation & process control systems for high temperature media.


High-temperature Gage Pressure Transmitters MIDA-SG-12-082-C Specification

Applications Industrial instrumentation & process control systems for high-temperature media, including viscous liquids, polymer melts
Measured medium High-temperature liquids, gases, melts compatible with titanium alloys and stainless steel
Standard ranges, MPa 0-1… - 0-60
Output signal (wires) 4-20 mA (2-wire)
Operating temperature range,

-40 ... +300 - for A-zone;

40…+80 - for electronics ambient temperature (C-zone)

Compensated temperature range of output signal, +20 ...300
Overall accuracy in compensated temperature range, no more than ±%
0,5
Supply voltage, V 12 ... 36 depending on loads resistance
Consumed current, no more, mA 20,2
Type and marking of intrinsic safety
0ExiaIICT2
Ingress protection IP64
Climatic modification UHL**3.1
Mechanical stability V3
Electrical connection Sealing gland straight (S) and angle (A); plug/socket (P)
Pressure port
Pressure port, thread specified on drawing
Weight no more than, kg 0,6
Specifications ТУ4212-043-18004487-2003
Number in the State Register of measuring devices of the Russian Federation
17635-03



High-temperature Gage Pressure Transmitters MIDA-SG-12-082-C Overall and mounting dimensions
