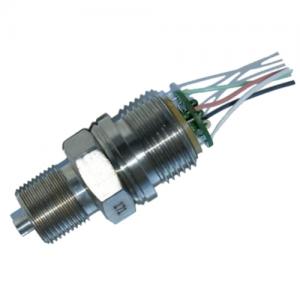

Gage Pressure Microelectronic Transducers 0~160MPa, -40℃~+120℃ - MIDA-MG-71

Pressure range 0~160MPa
Operating temperature range (-40℃~+120℃)
High accuracy, high stability
Wear resistance, impact resistance and anti-corrosion
Accuracy: ±0,1% (0,2) of output range
Supply voltage: 5-15 VDC

Model Number: MIDA-MG-71

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Gage Pressure Microelectronic Transducers 0~160MPa, -40℃~+120℃

MIDA-MG-71

Features:

pressure range 0~160MPa

Operating temperature range??(-40℃~+120℃)

high accuracy, high stability

wear resistance, impact resistance and anti-corrosion

Application:

aviation and aerospace fields

navigation and shipbuilding industry

petroleum and chemical industry

power plant and nuclear power plants

electrical submersible pump corollary equipment

industrial process pressure control

high precision digital pressure gauge

Specification

Applications	?Industrial instrumentation & process control systems
Measured medium	?Liquids and gases compatible with titanium alloys and stainless steels
Pressure range, MPa	?0-0,1… - 0-160
Accuracy (comb. L.H.R), no more?than, ±%	?0,1 (0,2) of output range
Zero output (at temperature of?20℃), mV/V	?± 0,2
Output range (at temperature of +25℃),?mV/V	?5 ± 0,2
Operating temperature range, ℃	?-40 ...+120
Compensation temperature?range, ℃	?-40 ...+120
Additional error in compensated?temperature range? of output range, no?more than, %	?3
Supply voltage, V	?5-15 DC
Overload pressure, no more than	?2 Pnom (0,1 … 2,5 MPa); ?1,5 Pnom (4 … 60 MPa); ?1,25 Pnom (100, 160 MPa)
Burst pressure	?not less than 4 Pnom
Insulation resistance	?not less 100 MOhm at 500 V and temperature of +25℃
