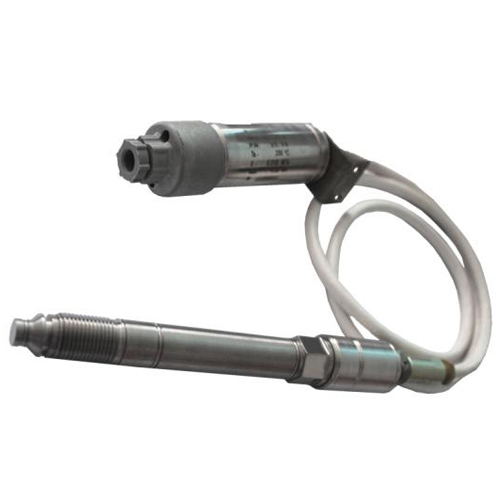

High-temperature Gage Pressure Transmitters 0-40MPa - MIDA-SG-12-081-C

Standard ranges 0-40MPa
Operating temperature range:
-40 ... +300 - for A-zone;
40…+80 - for electronics ambient temperature (C-zone)
Overall accuracy in compensated temperature range no more than: ±0,5?%
Supply voltage: 12 ... 36V depending on loads resistance
Ingress protection: IP64
Consumed current, no more, 20,2mA

Model Number: MIDA-SG-12-081-C

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

High-temperature Gage Pressure Transmitters 0-40MPa MIDA-SG-12-081-C

SG-12-081-C is based on Russia advanced titanium / silicon - sapphire dry flat membrane pressure sensor and advanced analog circuit. It is with wide pressure range, wide temperature range, high stability, wear resistance, impact resistance and anti-corrosion and other prominent features.

Also, it is easy cleaning and can be used for Industrial instrumentation & process control systems for high temperature media

High-temperature Gage Pressure Transmitters Specification

Applications	Industrial instrumentation & process control systems for high temperature media, including viscous liquids, polymer melts
Measured medium	High-temperature liquids, gases, melts compatible with titanium alloys and stainless steel
Standard ranges, MPa	0-0,4… - 0-40
Output signal (wires)	4-20 mA (2-wire)
Operating temperature range,℃	-40 ... +300 - for A-zone; 40…+80 - for electronics ambient temperature (C-zone)
Compensated temperature range of output signal,℃	+20 ...+300
Overall accuracy in compensated temperature range, no more than ±%	0,5
Supply voltage, V	12 ... 36 depending on loads resistance
Consumed current, no more, mA	20,2
Type and marking of intrinsic safety	0ExiaIICT2
Ingress protection	IP64
Climatic modification	UHL**3.1
Mechanical stability	V3
Electrical connection	Sealing gland straight (S) and angle (A); plug/socket (P)

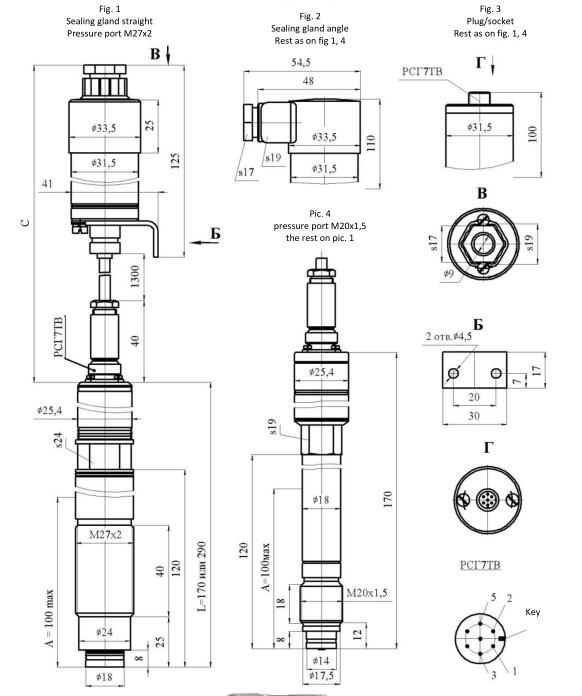

Pressure port	Pressure port, thread specified on drawing
Weight no more than, kg	0,6
Specifications	ТУ4212-043-18004487-2003
Number in the State Register of measuring devices of the Russian Federation	17635 - 03
