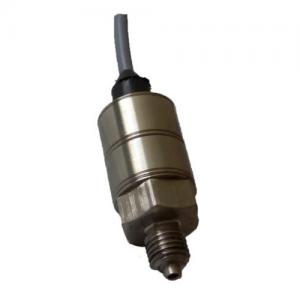

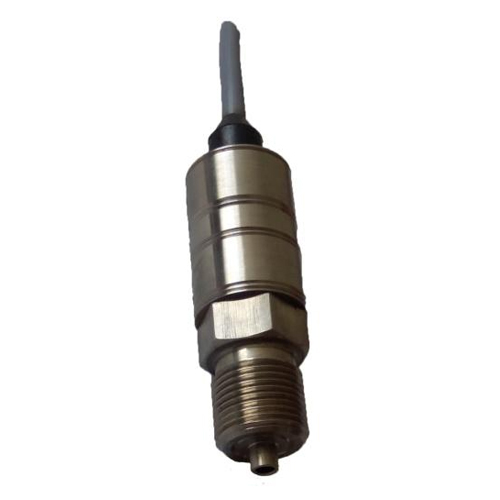

Absolute Pressure Microelectronic Transducers 0~10MPa, -40℃~+80℃ - MIDA-TA-51

Wide pressure range 0~160MPa
Operating temperature range -40℃~+80℃
High accuracy, high stability
Cost-effective
Accuracy: ≤ ±0,1%; ≤ ±0,2%
Supply voltage: 5 - 15 V

Model Number: MIDA-TA-51

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Absolute Pressure Microelectronic Transducers 0~160MPa, -40℃~+80℃

MIDA-TA-51

Features:

Wide pressure range 0~160MPa

Operating temperature range -40℃~+80℃

High accuracy, high stability

Cost-effective

Application:

specially for electric submersible pump and oilfield downhole pressure gauge

industrial process pressure control

aviation and aerospace fields

navigation and shipbuilding industry

petroleum and chemical industry

power plant and nuclear power plants

electrical submersible pump corollary equipment

Specification

Applicationsy	Industrial instrumentation & process control systems
Measured medium	Fluids and gases compatible with titanium alloys and stainless steels
Standard ranges, MPa	0-0,04… - 0-10
Accuracy (comb. L.H.R),no more than, ±%	0,1; 0,2
Zero output, ±m(xù)V/1 V of supply voltage	0,1 (for 0,1%); 0,2 (for 0,2%)
Output range, mV / V	5,0+0,2 (3,0+0,2 for 0,01 MPa; 10+0,2 by special request)
Operating temperature range, ℃	-40 ... +80
Additional temperature error in operating temperature range (-40…+80℃), no more than, %	2,0 (for 0,1%); 3,0 (for 0,2%)
Compensated temperature range, ℃	---
Additional error within compensated temperature range, no more than, %: of zero output of output range	---
Supply voltage, V	5 - 15
Input and output resistance, kOhm	Rвх ≥4; Rвых ≤7
Overload, no more than	1,5Рnom (<40 MPa), и 1,25Pnom(>40 MPa)
Insulation resistance(at temperature of 25 ℃), not less than	100 MOhm at 100 V
