Canister Load Cell - 106AH
? Material: Alloy steel
? Rated Capacities: 5t, 10t, 20t, 30t, 50t
? Full Scale Output: 1.5mV/V ± 0.25%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? CE and RoHS certified
? Measurement Ukraine certified
- Model Number: 106AH
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
106AH Canister Load Cell
106AH Canister Load Cell Features
? Material: Alloy steel
? Rated Capacities: 5t, 10t, 20t, 30t, 50t
? Full Scale Output: 1.5mV/V ± 0.25%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? CE and RoHS certified
? Measurement Ukraine certified

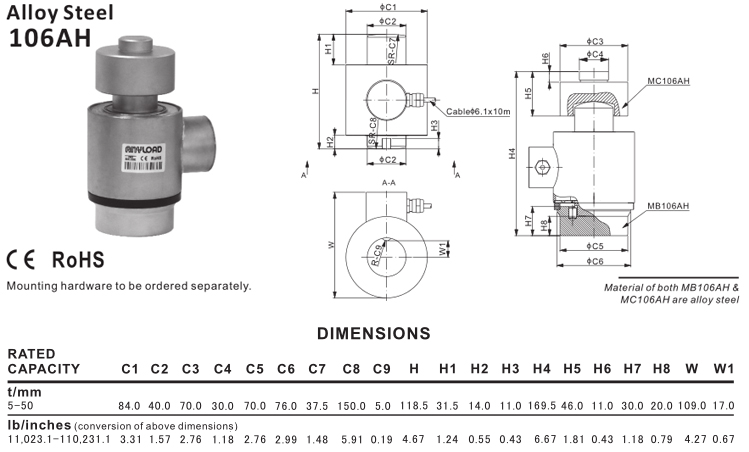

106AH Canister Load Cell Specification
|
Full Scale Output |
1.5 mV/V ±0.25% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
<±0.017% |
|
Repeatability |
<±0.017% |
|
Hysteresis Error |
<±0.017% |
|
Creep in 30 min. |
<±0.023% |
|
Input Resistance |
770Ω±30 |
|
Output Resistance |
700Ω±5 |
|
Element Material |
Alloy Steel, Nickel Plated |
|
Recommended Excitation |
10V (15V Maximum) |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Welded Sealed / IP67 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare |
106AH Canister Load Cell Part Number
|
Load Cell |
||
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
5t |
106AH-5t |
4.5 |
|
10t |
106AH-10t |
4.5 |
|
20t |
106AH-20t |
4.5 |
|
30t |
106AH-30t |
4.5 |
|
50t |
106AH-50t |
4.5 |
|
Mounting Hardware |
|||
|
Mounting Hardware |
Load Cell Capacity |
Part No. |
Shipping Weight (kg) |
|
Mounting Cap |
5t-50t |
MC106AH-(5-50)t |
1.0 |
|
Mounting Base |
5t-50t |
MB106AH-(5-50)t |
0.8 |
