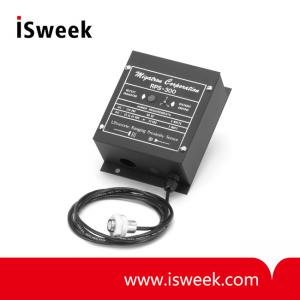

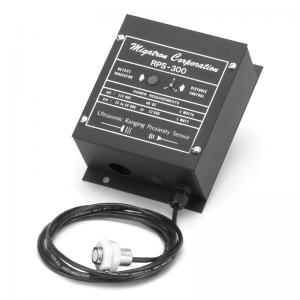

Controller With Remote Sensing Hand - RPS-300

? Ranges: 4-14", 5-36", 8-72"
? Input Current: 30 Milliamps
? Input with 500 card: 50 Milliamps
? Ambient Temperature: 0"C to 60"C or 32"F to 140"F
? Transducer Frequency: 222kHz for 14" and 36", 150kHz for 72"
? Weight of Controller:? 34.2 ounces?
? Narrow beam sensor
? On/off output with analog capability

  • Model Number: RPS-300
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Controller With Remote Sensing Hand
  • Controller With Remote Sensing Hand
Mouse over image to zoom
Share:

Product Specification

RPS-300 Controller with remote sensing hand Features
? Various Sensing Ranges
? Narrow Sensing Beam
? High Frequency
? LED Indicator
? Sealed Transducer
? RPS-500 Compatible
? 3-Way Power Operation
? Isolated Form C Relay Output
? Small Electronic Controller
? Small Remote Transducer

RPS-300 Controller with remote sensing hand Description
The RPS-300 is a high frequency, sealed transducer unit best suited for environments where dirt and moisture are a problem. The transducer heads are made of Delrin with epoxy face for the 14″ and 36″ sensors and Valox with a silicon face for the 72″. The remote transducer allows for mounting of the sensor head in cramped spaces while the controller is out of the way. The ranging and proximity modes provide the versatility of simple detection, or actual distance measuring. The isolated form C relay furnishes N.O. and N.C. outputs, and with the addition of the RPS-500 card various analog outputs are supplied. The RPS-300 sensor operates at a frequency of 222kHz for the 14″ and 36″ ranges and 150kHz for the 72″ range. This sensor has a narrow sensing beam. Sensing ranges available for the RPS-300 include 4″ to 14″, 5″ to 36″, and 8″ to 72″. Mounting flanges, LED indicator, ranging potentiometer and 6-ft. transducer cable are included. Optional cable lengths are available.


RPS-300 Controller with remote sensing hand Specifications

Operational Range:


Adjustable 4" to 14"
Adjustable 5" to 36"
Adjustable 8" to 72"
Power Input:
  * Only 120VAC or 24VDC
   with 500 Analog card.

120VAC
15 - 24VDC
12VDC Regulated
12 - 17VAC
Input Current:
30 Milliamps
Input with 500 card:
50 Milliamps
Ambient Temperature:
0”C to 60”C or 32”F to 140”F
Controller:
Metal Enclosed
Transducer Housing:
Delrin Housing, 72" Stainless Steel
Transducer:
Glass Epoxy Face, 72" has silicone face
Output: N.O., N.C.
Isolated Form C Relay
.5 Amp Maximum at 120VAC
12VDC Logic Signal
Output with 500 card:
0 - 10VDC, 4 - 20 mA Analog Outputs with
Zero, Span, Sample, and Hold controls.
Transducer Frequency:
222kHz for 14" and 36", 150kHz for 72"
Response Time:
  4" to 14"
  5" to 36"
  8" to 72"

ON 30mS; OFF 30mS
ON 50mS; OFF 50mS
ON 60mS; OFF 60mS
Weight of Controller:
34.2 ounces
Weight of Transducer:
4.5 ounces


PART NUMBER
RANGE
OUTPUT
RPS-300-14
RPS-300-36
RPS-300-72
4" - 14"
5" - 36"
8" - 72
Isolated form C Relay
RPS-300-14-500
RPS-300-36-500
RPS-300-72-500
4" - 14"
5" - 36"
8" - 72
0 - 10VDC and 4 - 20mA Analog
