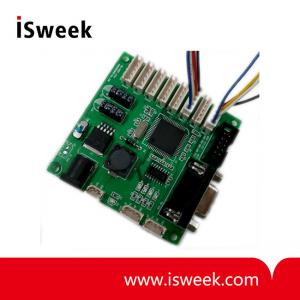

Distance Measure Sensor Interface Board - HG-DMSI-03

Product Specification

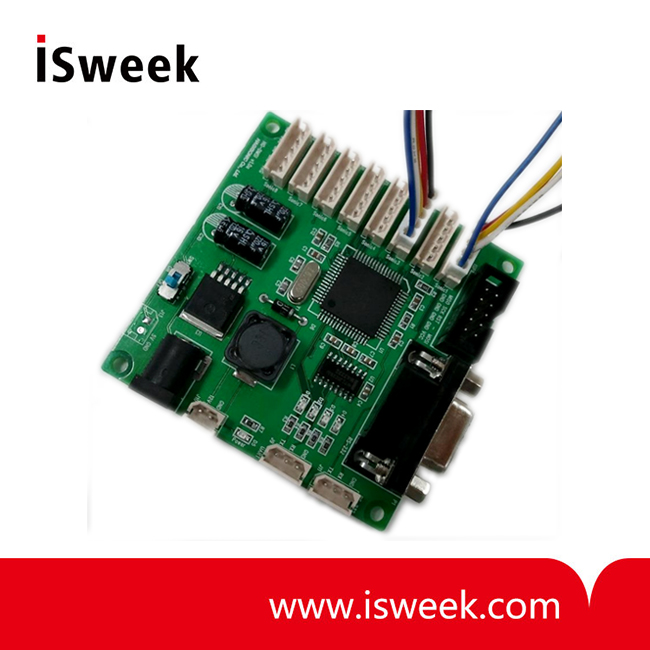

Distance Measurement Interface Board

HG-DMSI-03 Distance Measure Sensor Interface Board Features
? Size : 80 x 80 mm
? Channel : Connect up to 8 Ultrasonic Sensors
                  (HG-B40A, HG-B40C <5V and external mode> only)
? Power : DC 12V(DC Jack connector 1ea, 2pin connector 1ea),
               DC 5V(2pin connector 1ea)
? Output : RS232(9-pin DSUB 1, 3-pin connector 1), UART(3-pin connector 1)

HG-DMSI-03 Distance Measure Sensor Interface Board Communication Setting
? Default Baudrate : 57600 bps * (LED ON is showing current Baudrate )
1: 9600, 2:19200, 3:38400, 4:57600
? Data bit : 8 bit
? Stop bit : 1 bit
? Parity bit : None
? Hardware Flow control : None

HG-DMSI-03 Distance Measure Sensor Interface Board

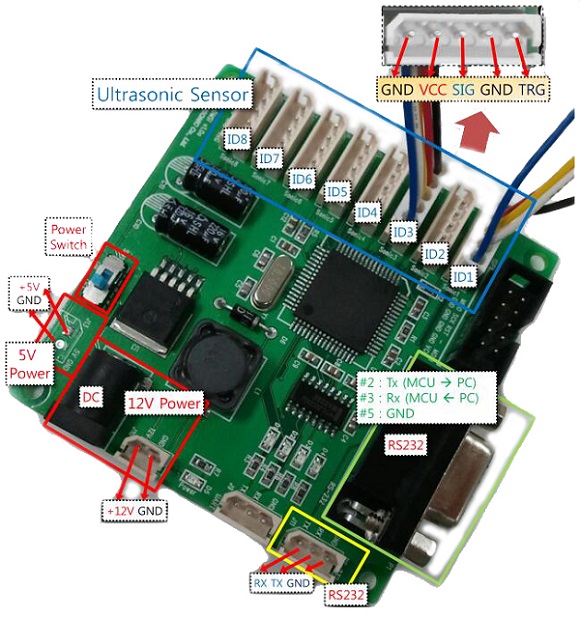

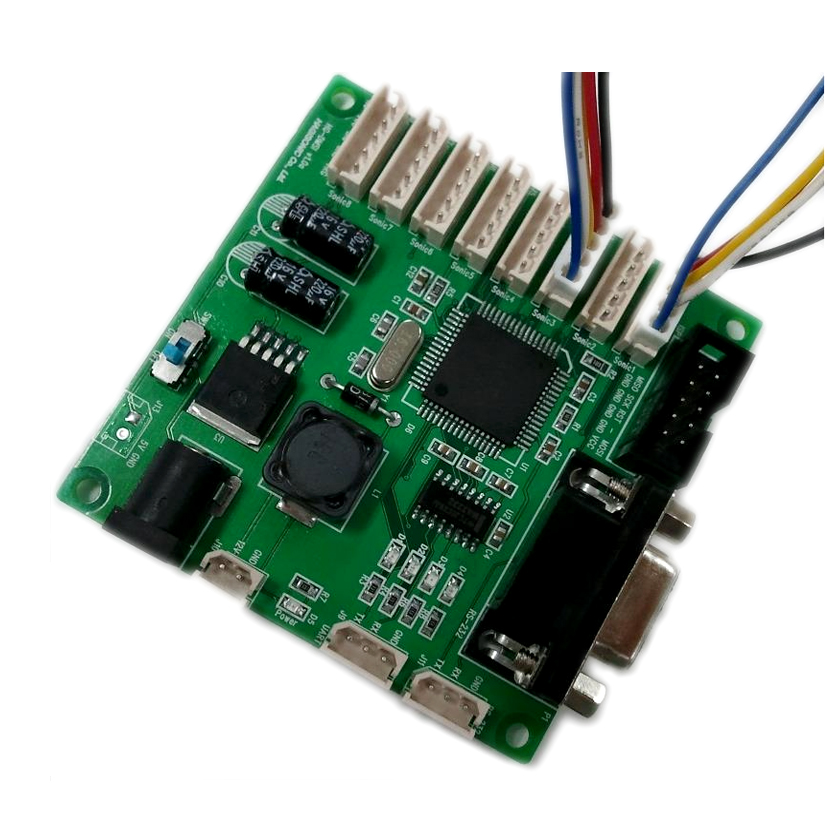

? Board

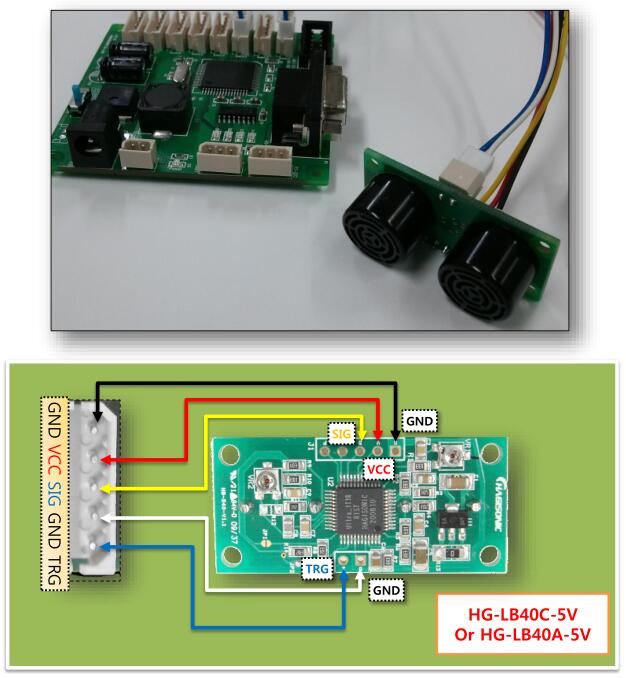

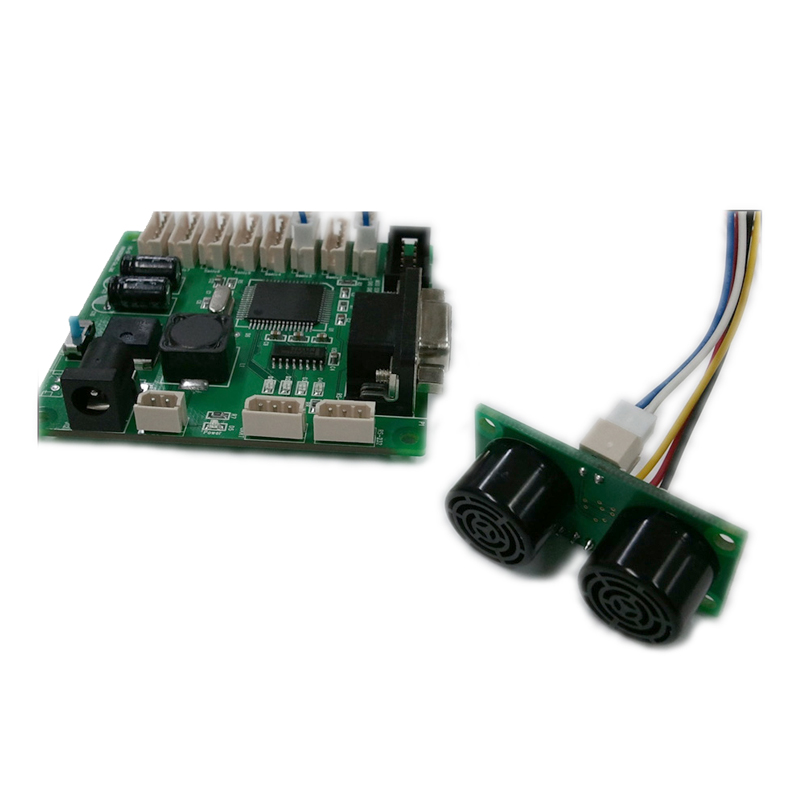

? Ultrasonic Sensor(HG-B40) Connection
