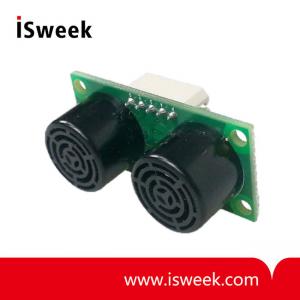

Distance Measurement Interface Boards - HG-LB40C-5V-DM
? Frequency (KHz): 40±2?
? Receiver Output Signal?:
Analog?: ±2 V max at 2.5 V Base Line?
Real Time Pulse?: 4~5 V TTL, All the objects detected?
Distance Pulse?: 4~5 V TTL Only the nearest Object?
? Input DC & Detecting Range: 0~3 m (Conventional, HG-LB40C)? (5V)?
? Low-power, high-sensitivity module.
- Model Number: HG-LB40C-5V-DM
- Data Sheet:
- Quantity:
- - +
Product Specification
HG-LB40C-5V-DM
HG-LB40C-5V-DM Distance Measurement Interface Boards Features
? Low-power, high-sensitivity module.
? Choose from a wide variety of input/output Mode.
? Auto sensitivity control function as a distance proportional to the distance error captain.
? The same standards as existing foreign products and mutually replaceable.
HG-LB40C-5V-DM Distance Measurement Interface Boards Specification
|
Frequency (KHz) |
40±2 |
|
|
Transmit Mode |
External Trigger |
TTL Pulse (100~700 ?) |
|
Repetition Rate (10~30 time / sec) |
||
|
Receiver Output Signal |
Analog |
±2 V max at 2.5 V Base Line |
|
Real Time Pulse |
4~5 V TTL, All the objects detected |
|
|
Distance Pulse |
4~5 V TTL Only the nearest Object |
|
|
Input DC & Detecting Range (at in front angle flat plate) |
Low Voltage Type (5V) |
0~3 m (Conventional, HG-LB40C) |
