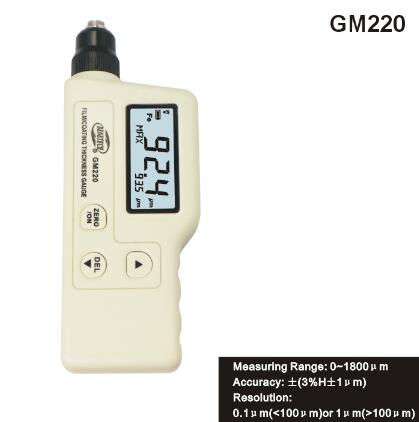

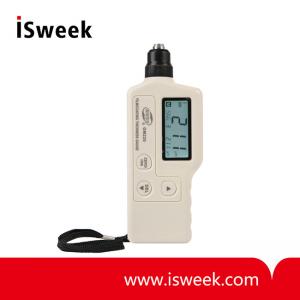

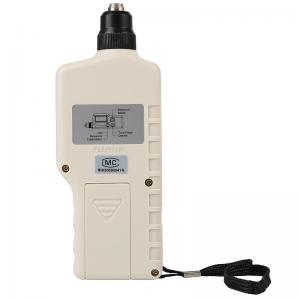

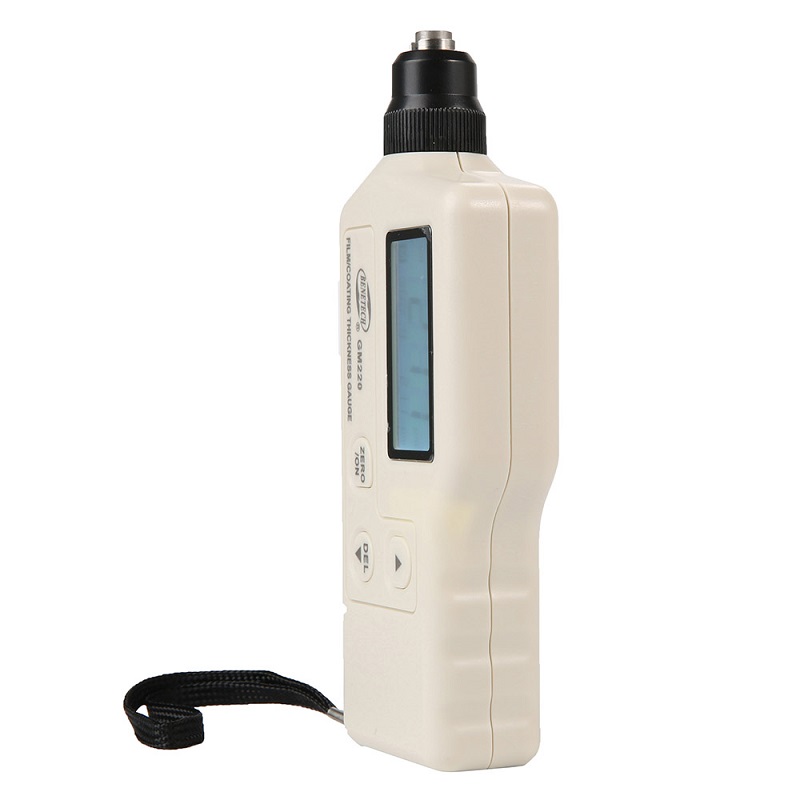

Film/Coating Thickness Gauge - GM220

? Measuring range: 0~1800μm
? Accuracy: ±(3%H±1μm)
? Resolution: 0.1μm (<100μm) or 1μm(>100μm)
? LCD display?: 3 1/2 display?
? Power supply?: 9V Alkaline battery?
? Operation current?: About 14mA?
? Batter?y life?: Continuously 20 hour?
? Operation temperature?: 0~40 ℃?
? Operation humidity?: 10~95% RH

  • Model Number: GM220
Quantity:
- +
  • Film/Coating Thickness Gauge
  • Film/Coating Thickness Gauge
  • Film/Coating Thickness Gauge
Mouse over image to zoom
Share:

Product Specification

GM220  Film/Coating Thickness Gauge Introduction
This portable product adopts magnetic induction technique for measurement. The compact design perform fast, precise and non-destructive digital coating measurement and plating on steel magnetic conductor. It is widely used on manufacturing, workshop, chemistry or quality control fields.

GM220  Film/Coating Thickness Gauge Features
? LCD display measurement value and status.
? Using Hi- sensibility sensor for precise measurement.
? 0 point, 2 point and basic, three different calibration methods to make it easy to process the system quick calibration.
? Measure mode: Single, continually and difference .
? Data record, recall and delete function.
? Data analysis: Average, Maximum, Minimum, standard deviation, and measure times.
? Beep sounds indication.
? Metric / Imperic unit selection.
? Low Battery indication.
? Auto power off .
? LCD backlight .
? Simple, compact structure and portable design.

GM220  Film/Coating Thickness Gauge Measurement range

Range
Resolution
Accuracy
0~1800μm
0.1um/1μm
±(3%H+1μm)
Remark: H=Nominal transformation ratio

GM220  Film/Coating Thickness Gauge  Condition of Objective material
? Suitable for measure non-magnetic coating on magnetic conductor base material.
? The minimum curvature radius. Convex: 2mm Convex: 2 Concave=11 Concave: 11mm
? Minimum Sample diameter: 12mm
? Minimum Substrate thickness : 0.5mm

GM220  Film/Coating Thickness Gauge  Specification
Technical parameter
Technical specification
LCD display
3 1/2 display
Power supply
9V Alkaline battery
Operation current
About 14mA
Battery life
Continuously 20 hour
Auto power off
1 minute
LCD backlight function
7 second.
Operation temperature
0~40 ℃
Operation humidity
10~95% RH
Low battery indication
7.0V ± 0.2V
Product size
67x 30x 175mm
Weight
133G (without battery)
