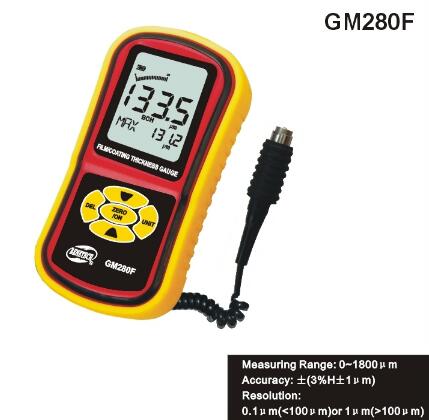

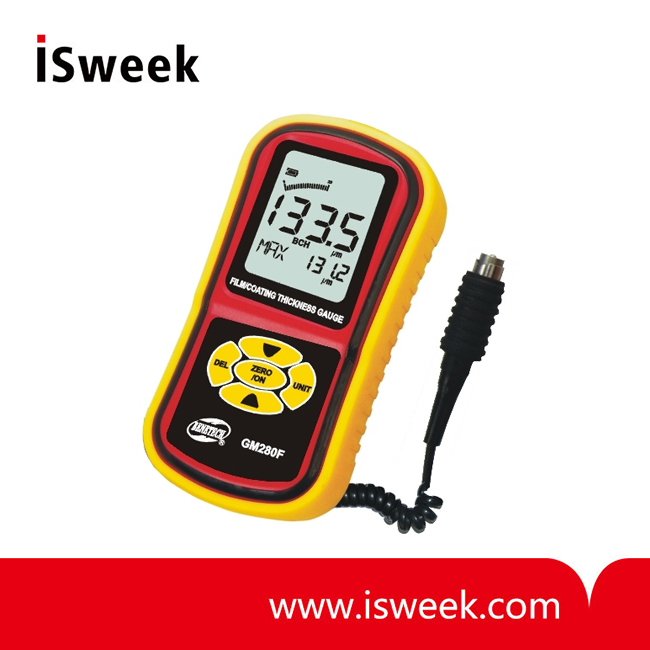

Film/Coating Thickness Gauge - GM280F

? Measuring range: 0~1800μm
? Accuracy: ±(3%H±1μm)
? Resolution: 0.1μm or 1μm
? Power supply: 3*1.5V AAA alkaline battery
? Operation current: Around 25mA
? Battery life: Continuously 20 hour
? Operation temperature: 0 to 40℃
? Operation humidity: 10 to 95%RH

  • Model Number: GM280F
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Film/Coating Thickness Gauge
  • Film/Coating Thickness Gauge
  • Film/Coating Thickness Gauge
  • Film/Coating Thickness Gauge
Mouse over image to zoom
Share:

Product Specification

GM280F Film/Coating Thickness Gauge Introduction
This product adopts piezoelectric effect of artificial polarized ceramic for design. it is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. Field.

GM280F Film/Coating Thickness GaugFeatures
? LCD displays measurement result and conditions directly
? Measures acceleration (m/s2 peak), velocity (mm/s ms), and displacement (mm p-p)
? Selective vibration characteristic
? Uses hi-sense of vibration sensor, measuring accurately
? Equipped with two probes (S and L) to adapt the different measurement requirements
? Provides a magnetic probe to fit the condition uneasy hold on by hand
? Low battery indication
? Auto turn off function
? LCD back light function
? Maximum value hold function
? Temperature unit °C/°F selection

GM280F Film/Coating Thickness GaugMeasurement range

Range
Resolution
Accuracy
0 to 1800μm
0.1μm/1μm
±(3%H+1μm)
Remark: H= Nominal transformation ratio

GM280F Film/Coating Thickness GaugCondition of Objective material
Suitable for measure about non magnetic coating on magnetic conductor base material.
The minimum curvature radius. Convex=2mm Concave= 11mm
Base sample diameter: 12mm
Base substrate thickness: 0.5mm

GM280F Film/Coating Thickness GaugSpecification
Technical parameter
Technical index
LCD display
3 1/2 display
Power supply
3*1.5V AAA alkaline battery
Operation current
Around 25mA
Battery life
Continuously 20 hour
Auto off
1 min.
LCD backlight function
7 second
Operation temperature
0 to 40℃
Operation humidity
10 to 95%RH
Low battery indication
2.8V±0.2V
Product size
72x35x145mm
Weight
246.1g (without battery)



If you cannot find what you want, you can entrust ISweek to source for you. Just click:

Sourcing Service
