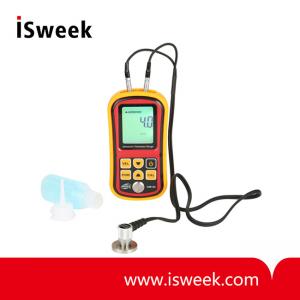

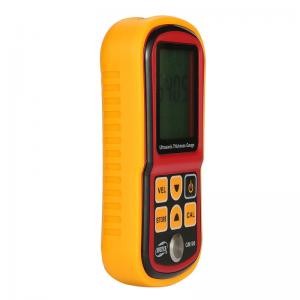

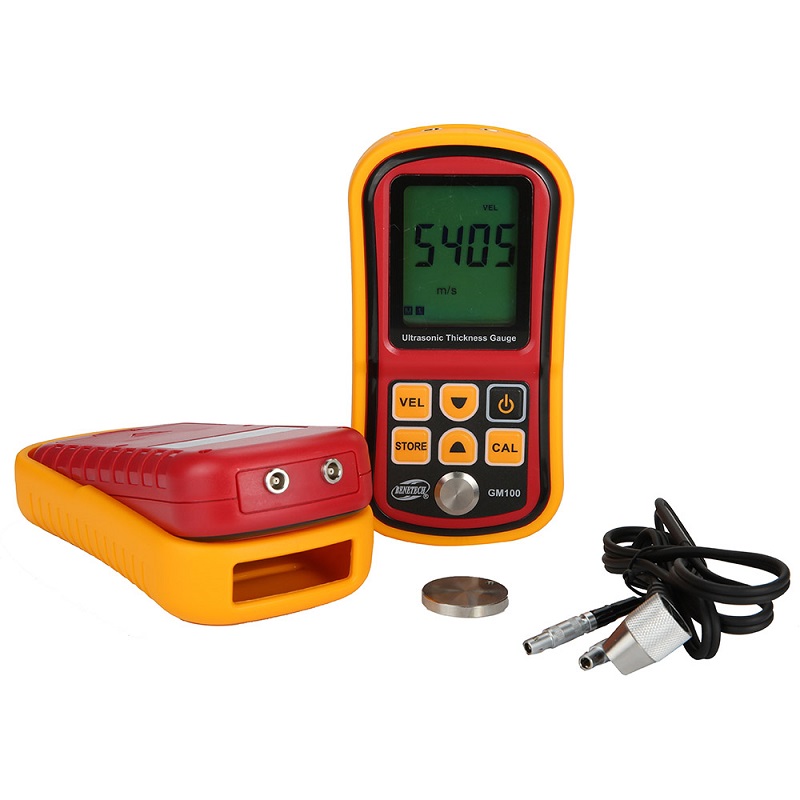

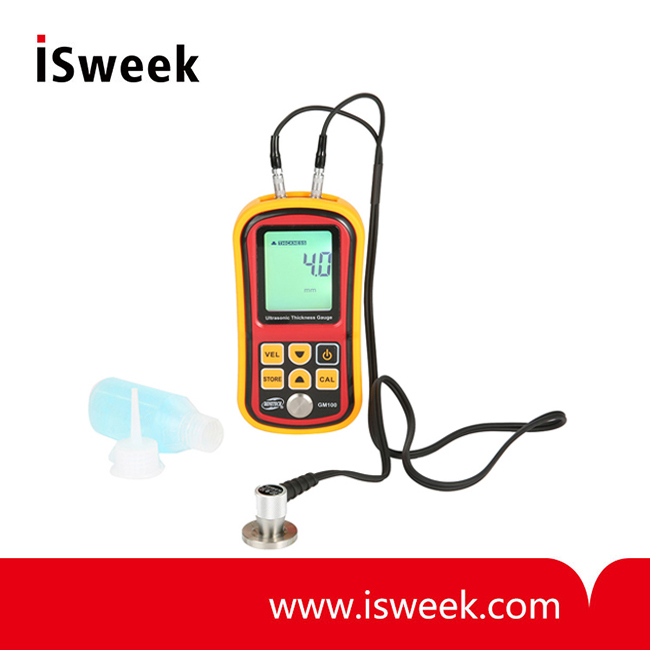

Ultrasonic Thickness Gauge - GM100

? Display: 4-digital LCD display?
? Measuring range: 1.2 to 225.0mm (steel)?
? Accuracy: ±(1%H+0.1) mm
? Sound velocity range: 1000~9999m/s
? Working frequency: 5MHz
? Minimum limit for tube measuring: Φ20*3mm (Steel)
? Operation temperature: 0 to 40℃
? Power supply: 3*1.5V AAA alkaline batteries?

  • Model Number: GM100
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Ultrasonic Thickness Gauge
  • Ultrasonic Thickness Gauge
  • Ultrasonic Thickness Gauge
  • Ultrasonic Thickness Gauge
Mouse over image to zoom
Share:

Product Specification

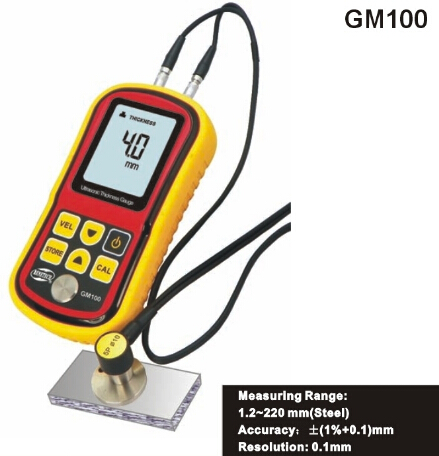

GM100 Ultrasonic Thickness Gauge Introduction
This ultrasonic thickness gauge is an intelligent handhold product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material.

This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-de-creasing during operation of various and pressure container.

Diffusely applied in manufacture fields, metal processing, and commercial inspection. The material that conduct and reflect constant sonic velocity, this product is to be applicable to used.

GM100 Ultrasonic Thickness Gauge Scope of application
This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc., as long as the measured part in two parallel surfaces for measurement of thickness.

This unit is not suitable for cast iron due to its big crystalloid composition.

GM100 Ultrasonic Thickness Gauge Features
? Auto calibration to assure the accuracy.
? Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
? Use up and down keys to make a quick adjustment for the sound velocity /thickness,and a quick recall to the stored data.
? Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
? 10 thickness measurement storage and recall function available, which facilitates the height work or working in wild area.
? Sound velocity measurement: With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table.
? 12 sound velocity for different material which also adjus- table.
? Low battery indication
? Auto power off mode designed to conserve battery life.
? More than 10000 times long lift keys.
? The unit has a special memory that retains all of its setting even when the power is off.

GM100 Ultrasonic Thickness Gauge Specification

Display
4-digital LCD display
Minimum display unit
0.1 mm
Working frequency
5MHz
Measuring range
1.2 to 225.0mm (steel)
Minimum limit for tube measuring
Φ20*3mm (steel)
Accuracy
+/- (1%H+0.1)mm H denotes the measured thickness.
Sound velocity range
1000 to 9999 m/s
Measuring sound velocity
with a given thickness

measuring range: 1000 to 9999 m/s.
When the given thickness over 20mm, the accuracyis +/-1%;
when the given thickness less than 20mm, the accuracy is+/-5%.
Operation temperature
0 to 40
Power supply
3*1.5V AAA alkaline batteries
Operation current
Normal operation current: 50mA
With Backlight turn on current: 120mA
Stand-by current: ≤20uA
Size
72*146*29mm
Weight
202g
