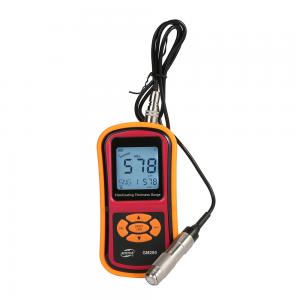

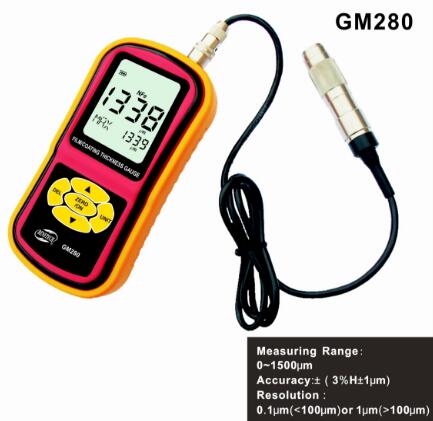

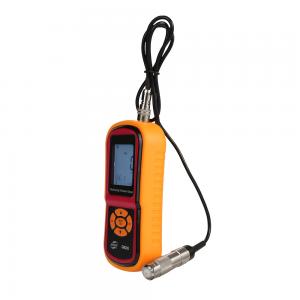

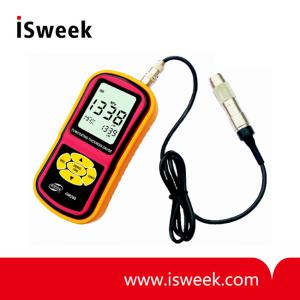

Film/Coating Thickness Gauge - GM280
? Measuring range: 0~1500μm
? Accuracy: ±(3%H±1μm)
? Resolution: 0.1μm/1μm?
? Power supply?: 3*1.5V AAA alkaline battery?
? Operation current?: Around 10mA?
? Battery life?: Continuously 20 hour
? Operation temperature?: 0 to 40℃?
? Operation humidity?: 10 to 95%RH??
- Quantity:
- - +
Product Specification
GM280 Film/Coating Thickness Gauge Introduction
This product adopts eddy current measuring principle, can measure the thickness of conductive coatings on the non-magnetic material, has been widely applied in the fields of mechanical manufacture, electric power metallurgy and general aviation etc.
GM280 Film/Coating Thickness Gauge Features
? LCD displays measurement result and conditions directly
? Measures acceleration (m/s2 peak), velocity (mm/s ms), and displacement (mm p-p)
? Selective vibration characteristic
? Uses hi-sense of vibration sensor, measuring accurately
? Equipped with two probes (S and L) to adapt the different measurement requirements
? Provides a magnetic probe to fit the condition uneasy hold on by hand
? Low battery indication
? Auto turn off function
? LCD back light function
? Maximum value hold function
? Temperature unit °C/°F selection
GM280 Film/Coating Thickness Gauge Measurement range
Remark: H= Nominal transformation ratio
Range
Resolution
Accuracy
0 to 1500μm
0.1μm/1μm
±(3%H+1μm)
GM280 Film/Coating Thickness Gauge Condition of Objective material
? Suitable for measure non magnetic coating on conductor base material.
? The minimum curvature radius. Convex=3mm
? Base sample diameter: 12mm
? Base substrate thickness: 0.5mm
GM280 Film/Coating Thickness Gauge Specifications
Technical parameter
Technical index
LCD display
3 1/2 display
Power supply
3*1.5V AAA alkaline battery
Operation current
Around 10mA
Battery life
Continuously 20 hour
Auto off
80 seconds
LCD backlight function
15 seconds
Operation temperature
0 to 40℃
Operation humidity
10 to 95%RH
Low battery indication
3.0V ± 0.2V
Product size
72 x 35 x 145 mm
Weight
216.5 g (without battery)
