Piezo Ultrasonic Sensor - T/R55.5-15.5E279Z-L19-01

? Resonant frequency: 55.5±1.0KHz
? Sensitivity: 480-1000μS
? Directivity(deg) X-axis: 90 ± 15 (Typical)?
? Directivity(deg) Y-axis: 45 ± 10 (Typical)?
? Capacitance: 1300pF ± 20%
? Operating temperature?: -40 ℃ ~ +85 ℃?
? ?Storage temperature?: -40 ℃ ~ +85 ℃?

  • Model Number: T/R55.5-15.5E279Z-L19-01
  • Data Sheet: Date Sheet File
Quantity:
- +

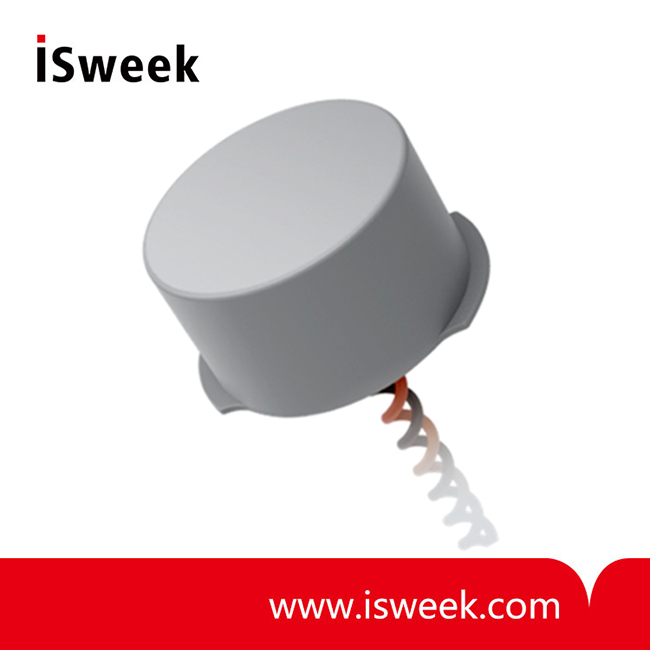

  • Piezo Ultrasonic Sensor

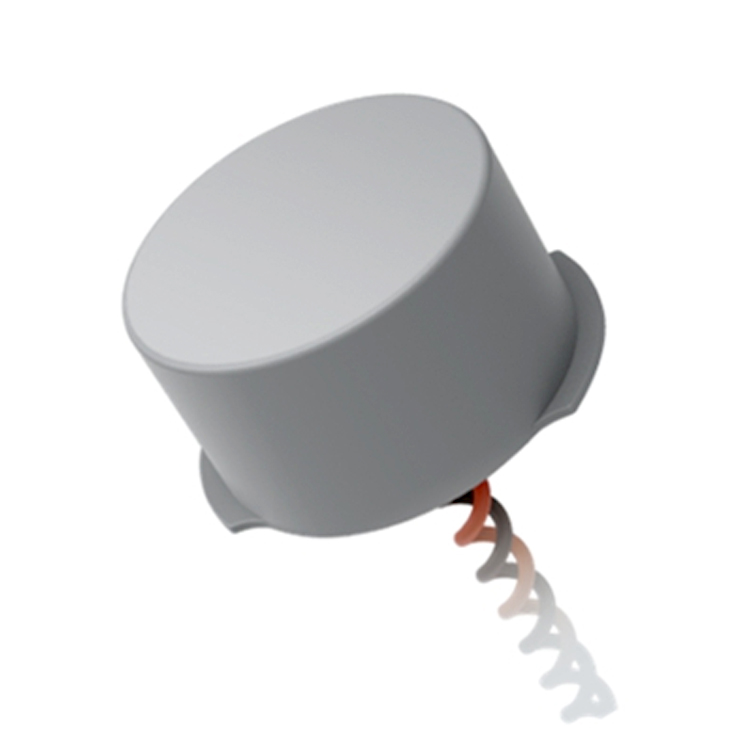

  • Piezo Ultrasonic Sensor
Mouse over image to zoom
Share:

Product Specification

T/R55.5-15.5E279Z-L19-01 Piezo Ultrasonic Sensor Summary
UPA ultrasonic sensor is the core component of Parking System. It uses ultrasound to measure the distance between the vehicle and the front and rear obstructions.

T/R55.5-15.5E279Z-L19-01 Piezo Ultrasonic Sensor Applications
? Parking assist system
? Blind zone detection

T/R55.5-15.5E279Z-L19-01 Piezo Ultrasonic Sensor Electrical Specifications

Resonant frequency
 55.5±1.0KHz
Sensitivity
 480-1000μS
Decay time
 ≤2.20ms at +25℃
≤2.60ms at -40 to +85℃
Directivity(deg) X-axis
 90±15 (Typical)
Directivity(deg) Y-axis
 45±10 (Typical)
Capacitance
 1300pF ± 20%
Max.input volt
 160 Vp-p at -40 to +25℃
120 Vp-p at +25 to +85℃
Operating temperature
 -40 ℃ ~ +85 ℃
Storage temperature
 -40 ℃ ~ +85 ℃
Insulation Resistance
 100 Mohm min.
Mean time to failure
 50000 H
