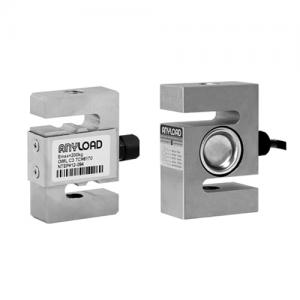

S-Beam Load Cell - 101BH

? Material: Alloy steel
? Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
? Full Scale Output: 2mV/V ± 1%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? CE, RoHS and Ex certified
? Measurement Ukraine certified

Model Number: 101BH

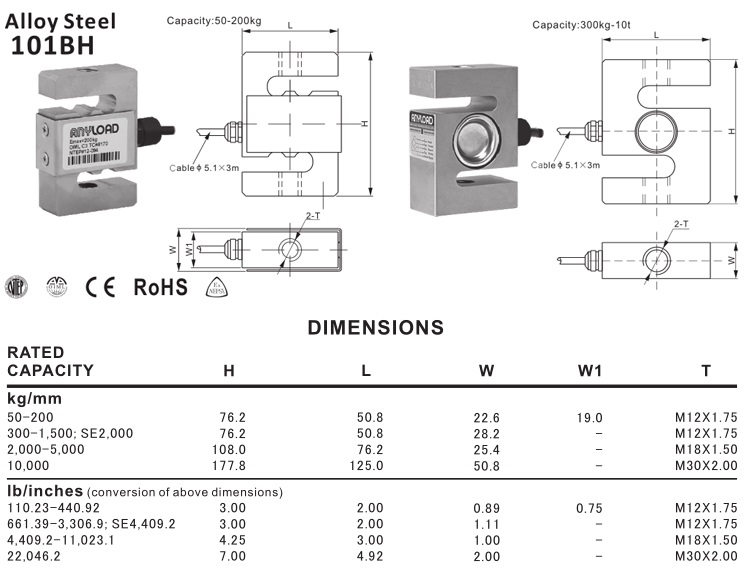

Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

101BH S-Beam Load Cell

101BH S-Beam Load Cell Features
? Material: Alloy steel
? Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
? Full Scale Output: 2mV/V ± 1%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
? NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
? OIML MAA C3, Y=17 000 certified from 200kg-1.5t
? OIML MAA C4.5, Y=14 000 certified from 2t-10t
? CE, RoHS and Ex certified
? Measurement Ukraine certified

101BH S-Beam Load Cell Specification

Full Scale Output	2.0 mV/V ±1%
Zero Balance	±0.02 mV/V
Non-linearity	<±0.017%
Repeatability	<±0.017%
Hysteresis Error	<±0.017%
Creep in 30 min.	<±0.023%
Input Resistance	400Ω ± 25
Output Resistance	350Ω ± 3
Element Material	Alloy Steel, Nickel Plated
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	>2 [50V DC] GΩ
Compensated Temperature Range	-10°C to 50°C / 14°F to 122°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type / IP Rating	Environmentally Sealed / IP67
Cable Color Code	Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare

101BH S-Beam Load Cell Part Number

Rated Capacity	Rated Capacity	Shipping Weight (kg) Approx.
50kg	101BH-50kg	0.6
100kg	101BH-100kg	0.6
200kg	101BH-200kg	0.6
300kg	101BH-300kg	0.8
500kg	101BH-500kg	0.8
1t	101BH-1t	0.8
SE2t	101BH-SE2t	0.8
2t	101BH-2t	1.5
3t	101BH-3t	1.5
5t	101BH-5t	1.5
10t	101BH-10t	7.4
