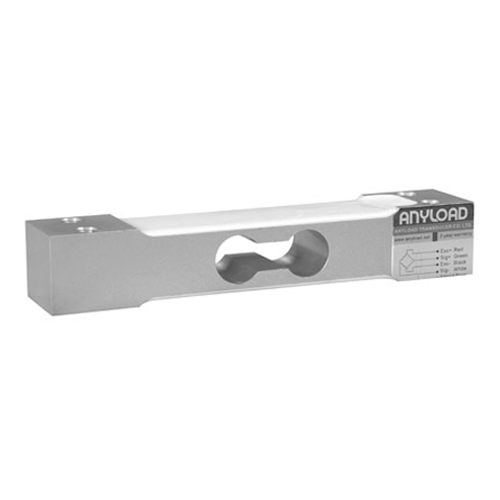

Single Point Load Cell - 108BA

? Material: Aluminum
? Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
? Full Scale Output: 2mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP66
? CE, RoHS, NTEP, and Ex certified
? Measurement Ukraine certified
? Measurement Spain certified

Model Number: 108BA
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

108BA Single Point Load Cell

108BA Single Point Load Cell Features
? Material: Aluminum
? Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
? Full Scale Output: 2mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP66
? OIML C3, Y=4 300 certified from 10kg-150kg
? CE, RoHS, NTEP, and Ex certified
? Measurement Ukraine certified
? Measurement Spain certified

108BA Single Point Load Cell Specification

Full Scale Output	2.0 mV/V ±10%
Zero Balance	±0.02 mV/V
Non-linearity	<±0.017%
Repeatability	<±0.017%
Hysteresis Error	<±0.017%
Creep in 30 min.	<±0.023%
Input Resistance	415Ω±15
Output Resistance	350Ω±3
Element Material	Aluminum
Recommended Excitation	10V (15V Maximum)
Reference Max.Platform Size	400 x 400 mm
Insulation Resistance	>2 [50V DC] GΩ
Compensated Temperature Range	-10°C to 40°C / 14°F to 104°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type / IP Rating	Environmentally Sealed / IP66
Cable Color Code	Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare

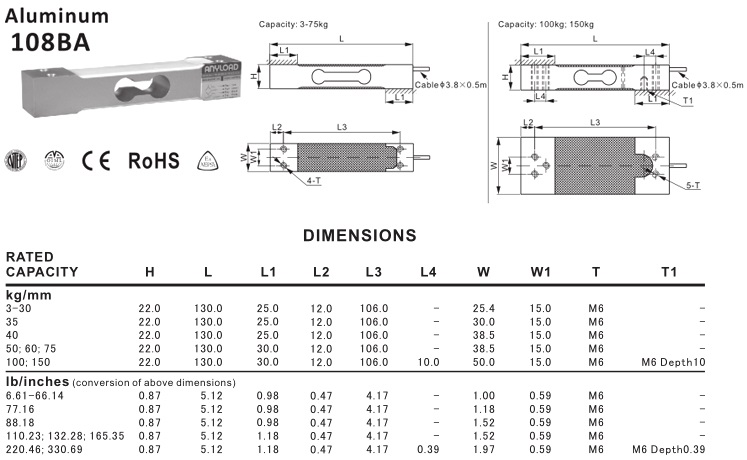

108BA Single Point Load Cell Part Number

Rated Capacity	Part No.	Shipping Weight (kg) Approx.
3kg	108BA-3kg	0.2
6kg	108BA-6kg	0.2
7kg	108BA-7kg	0.2
10kg	108BA-10kg	0.2
15kg	108BA-15kg	0.2
20kg	108BA-20kg	0.2
30kg	108BA-30kg	0.2
35kg	108BA-35kg	0.2
40kg (W=38.5mm)	108BA-40kg	0.2
40kg (W=30mm)	108BA-W1-40kg	0.2
50kg	108BA-50kg	0.26
60kg	108BA-60kg	0.26
75kg	108BA-75kg	0.26
100kg	108BA-100kg	0.35
150kg	108BA-150kg	0.35
