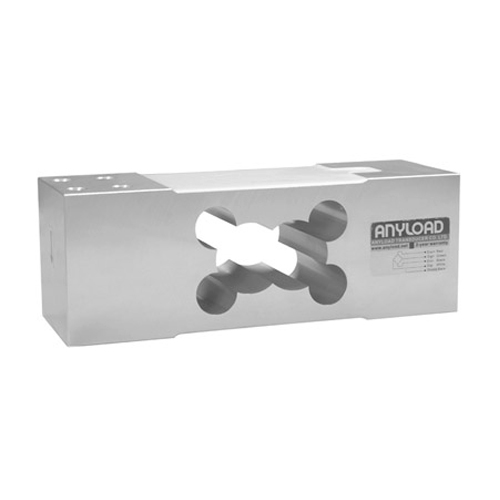

Single Point Load Cell - 108CA
? Material: Aluminum
? Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
? Full Scale Output: 2mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP66
? CE and RoHS certified
? Measurement Ukraine certified
? Measurement Spain certified
- Quantity:
- - +
Product Specification

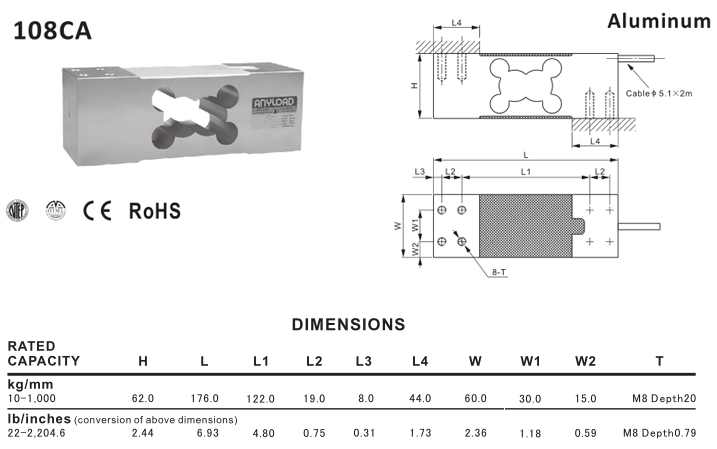

108CA Single Point Load Cell

108CA Single Point Load Cell Features
? Material: Aluminum
? Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
? Full Scale Output: 2mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP66
? NTEP 1:4 000, Class III, Single Cell certified from 200kg-2t
? OIML C3, Y=4 300 certified from 10kg-500kg
? CE and RoHS certified
? Measurement Ukraine certified
? Measurement Spain certified
108CA Single Point Load Cell Specification
|
Full Scale Output |
2.0 mV/V ±10% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
<±0.017% |
|
Repeatability |
<±0.017% |
|
Hysteresis Error |
<±0.017% |
|
Creep in 30 min. |
<±0.023% |
|
Input Resistance |
415Ω±15 |
|
Output Resistance |
350Ω±3 |
|
Element Material |
Aluminum |
|
Recommended Excitation |
10V (15V Maximum) |
|
Reference Max.Platform Size |
600 x 700 mm |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 40°C / 14°F to 104°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Environmentally Sealed / IP66 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare |
108CA Single Point Load Cell Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
10kg |
108CA-10kg |
1.5 |
|
20kg |
108CA-20kg |
1.5 |
|
30kg |
108CA-30kg |
1.5 |
|
60kg |
108CA-60kg |
1.5 |
|
100kg |
108CA-100kg |
1.5 |
|
150kg |
108CA-150kg |
1.5 |
|
200kg |
108CA-200kg |
1.5 |
|
250kg |
108CA-250kg |
1.5 |
|
300kg |
108CA-300kg |
1.5 |
|
500kg |
108CA-500kg |
1.6 |
|
600kg |
108CA-600kg |
1.6 |
|
750kg |
108CA-750kg |
1.6 |
|
1t |
108CA-1t |
1.6 |
