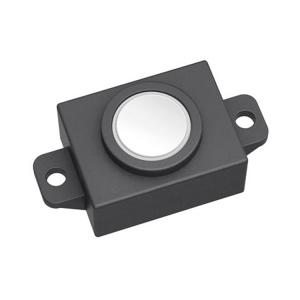

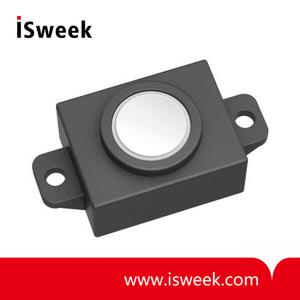

Ultrasonic Rangefinder - UM0090
? Measuring range?: 17~300cm (object: flat surface)?
? Frequency?: 58kHz?
? Resolution?: <1cm?
? Response time?: <1ms?
? Power-up delay?: ≤1s?
? Blind zone?: 17cm?
? Operating temperature?: -40~+80 ℃?
? Relative humidity?: ≤95% (No condensation)?
- Quantity:
- - +
Product Specification
UM0090 Ultrasonic Rangefinder Introduction
The UM0090 module is based on an ultrasonic sensor that combines transmitter and receiver in a single unit. By measuring the time of flight of ultrasonic wave, it can detect any object within 3 meters and output distance signals via UART interface.
This product features high sensitivity, fast response, and excellent anti-interference ability and stability. It is widely applied in object avoidance systems on robots, drones, and other smart devices.
UM0090 Ultrasonic Rangefinder Features
? Compact design for easy installation
? Measuring range up to 3M
? Excellent anti-interference ability
? Can detect objects of various colors, shapes and materials
UM0090 Ultrasonic Rangefinder Applications
? Robots
? Smart streetlight
? Smart trash bin
? Autonomous delivery vehicle
UM0090 Ultrasonic Rangefinder Technical Parameters
Properties |
|
Measuring range |
17~300cm (object: flat surface) |
Frequency |
58kHz |
Resolution |
<1cm |
Response time |
<1ms |
Power-up delay |
≤1s |
Blind zone |
17cm |
Output Format |
|
Output |
Measured distance via serial port (unit: cm) |
Trigger mode |
Low level pulse, pulse width≥50us |
Rated Operating Conditions |
|
Working environment |
indoors/outdoors |
Operating temperature |
-40~+80 ℃ |
Storage temperature |
-40~+85 ℃ |
Relative humidity |
≤95% (No condensation) |
Power Supply |
|
Power supply voltage |
DC 5V |
Working current |
≤10mA |
