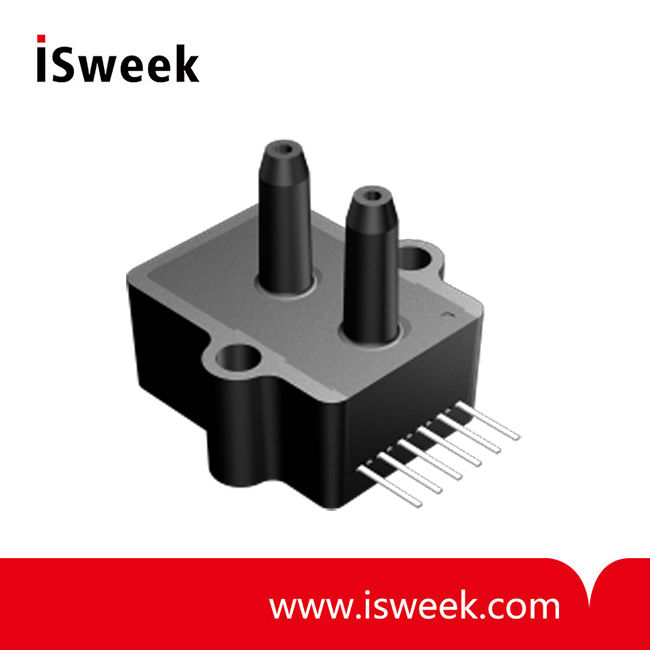

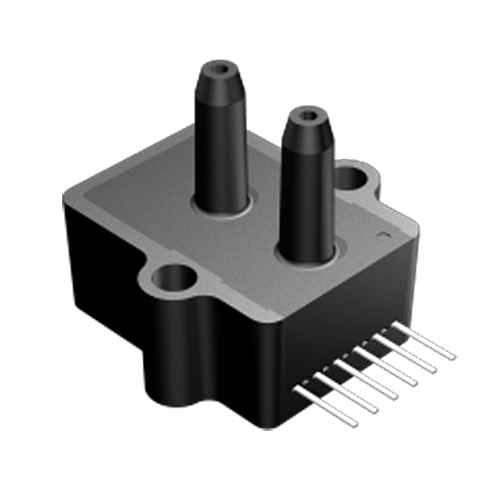

ADO Series Digital Output Pressure Sensors - 5 INCH-D-DO/1 PSI-D-DO

? Supply Voltage (Vcc): 7Vdc
? Common-mode pressur: 50 psig
? Lead Temperature (soldering 2-4 sec.): 250°C
? Operating Voltage?: +4.75 to +5.25Vdc
? Operating Temperature?: -25 to +90° C?
? Operating Temperature?: -25 to +90° C?
? Humidity Limits?: 0 to 95% RH (non condensing)
? Resolution?: 12? Bit

Model Number: 5 INCH-D-DO/1 PSI-D-DO
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Digital Output Pressure Sensors
Enhanced Digital Output Sensors

ADO Series Digital Output Pressure Sensors General Description
The Digital Output pressure sensors are based upon a proprietary surface mapping technology to produce a fully digital output that virtually eliminates all repeatable errors over temperature and pressure. This series provides a 12 bit digital serial output (14 bit in High Resolution Mode) with superior offset, span and linearity characteristics. The output is SPI and MICROWIRE/PLUS^? compatible as well as fully compatible with the All Sensors GA142 Series sensors.

In addition to synchronous communications, the Digital Output pressure sensors incorporates a bi-directional, TTL level, asynchronous serial interfaces mode (hardware selectable 9,600 or 19,200 baud). This mode includes a command set that allows the host to interrogate the sensor for model information, pressure range, serial number, pressure units and conversion factor. The command set also allows the host to select a high resolution output mode, make minor adjustments to offset and has an addressable feature that alows multiple sensors to be tied to the same interface buss.

This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. All signals are 5V TTL/CMOS compatible.

ADO Series Digital Output Pressure Sensors Features
? 5" H2O to 100psi Pressure Ranges
? All Combined Errors Over Temperature Less Than 0.1%, Typical
? Wide -20 to 85°C Compensated Temperature Range
? Electrically Compatible to All Sensors GA142 Series
? Enhanced Dual Serial Interface Mode

ADO Series Digital Output Pressure Sensors Applications
? Medical Instrumentation
? Environmental Controls
? HVAC
? Meteorology

ADO Series Digital Output Pressure Sensors

Absolute Maximum Ratings		Environmental Specifications
Supply Voltage (Vcc)	7Vdc	Operating Voltage	+4.75Vdc to +5.25Vdc
Voltage on Any Pin with Respect to Gnd	-0.6 to Vcc+0.6V	Compensated Temperature	-20 to +85 °C
Common-mode pressure	50 psig	Operating Temperature	-25 to +90 °C
Lead Temperature (soldering 2-4 sec.)	250°C	Storage Temperature	-40 to 125 °C
		Humidity Limits	0 to 95% RH (non condensing)

ADO Series Digital Output Pressure Sensors Standard Pressure Ranges

Part Numbe	Operating Pressure	Units	FSO	Digital Span	Proof Pressure	Burst Pressure
5 INCH-D-DO	-5 to 5	inH2O	5	1	200 inH2O	300 inH2O
10 INCH-D-DO	-10 to 10	inH2O	10	1	200 inH2O	300 inH2O
1 PSI-D-DO	-1 to 1	PSI	1	1	200 inH2O	300 inH2O
5 PSI-D-DO	-5 to 5	PSI	5	1	10 PSI	30 PSI
15 PSI-D-DO	-15 to 15	PSI	15	1	60 PSI	120 PSI
15 PSI-A-DO	0 to 15	PSIA	15	2	60 PSI	120 PSI
30 PSI-D-DO	-30 to 30	PSI	30	2	90 PSI	150 PSI
30 PSI-A-DO	0 to 30	PSIA	30	2	90 PSI	150 PSI
100 PSI-D-DO	-100 to 100	PSI	100	2	200 PSI	250 PSI
100 PSI-A-DO	0 to 100	PSIA	100	2	200 PSI	250 PSI

General Performance Characteristics (All Models)

Parameter	Minimum	Nominal	Maximum	Units
Resolution	12	-	-	Bit
Conversion Speed	-	8	16	mS
Supply Current	-	8	12	mA

Performance Characteristics for 5 INCH-D-DO

Parameter	Minimum	Nominal	Maximum	Units
Overall Accuracy	-	0.25	0.5	%FSO
Long Term Drift (one year)	-	-	0.5	%FSO
Offset Position Sensitivity (1g)	-	-	0.05	%FSO
Offset Warm-up Shift	-	-	0.25	%FSO

Performance Characteristics for 10 INCH-D-DO and 1 PSI-D-DO

Parameter	Minimum	Nominal	Maximum	Units
Overall Accuracy	-	0.25	0.5	%FSO
Long Term Drift (one year)	-	-	0.5	%FSO
Offset Position Sensitivity (1g)	-	-	0.03	%FSO
Offset Warm-up Shift	-	-	0.25	%FSO
