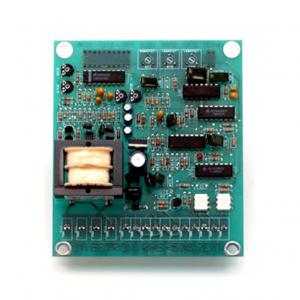

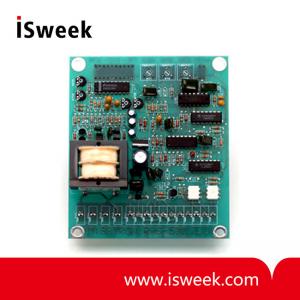

Analog Ranging Card - RPS-500

? Analog Ranging Card
? Ranges: 2-14", 5-36", 5-72", and 10-240"
? 2500 Volts Isolation
? 0 - 10 VDC Analog Voltage
? 4 - 20 mA Analog Current
? Inverting Switch
? Zero, Span, Sample & Hold Controls
? 120VAC or 24VDC Power Input

Model Number: RPS-500
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RPS-500 Analog Ranging Card Features
? Analog Ranging Card
? Ranges: 2-14", 5-36", 5-72", and 10-240"
? 2500 Volts Isolation
? 0 - 10 VDC Analog Voltage
? 4 - 20 mA Analog Current
? Inverting Switch
? Zero, Span, Sample & Hold Controls
? 120VAC or 24VDC Power Input

RPS-500 Analog Ranging Card Description
The RPS-500 ranging board was designed to give analog voltage and current outputs proportional to distance and can be used with the RPS-100, RPS-300, RPS-325 or RPS-326. It is a fast, accurate means of converting analog pulse width generated by the ultrasonic sensor into analog voltage and current. Ranges available are 2" to 14", 5" to 36", 5" to 72", 10" to 240".

RPS-500 Analog Ranging Card Specifications

Power Input:	120 VAC or 24 VDC
Ambient Temperature:	0°C to 60°C or 32°F to 140°F
Output 4 - 20mA:	Current sourcing, load 0 to 500 ohms. Reference to "GND OUT" terminal.
Output 0 - 10VDC:	Load Equal to or Greater than 500 ohms. Reference to "GND OUT" terminal.
Up Date Time:	10mS 14" card, 20ms 36" card, 40mS 72" card, 150mS 240" card.
ZERO Control:	Adjustable
SPAN Control:	Adjustable 5 : 1 ratio.
Switches:	1 ON, 2 ON increase voltage and current with distance. 1 OFF, 2 OFF decrease voltage and current with distance.
Output Isolation:	2500V for outputs 0-10 VDC, 4-20MA when powered by 120 VAC.

PART NUMBER	RANGE	OUTPUT
RPS-500-14	2" - 14"	Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted
RPS-500-36	5" - 36"	Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted
RPS-500-72	5" - 72"	Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted
RPS-500-240	10" - 240"	Analog 0 - 10 volt, 4 - 20mA, Inverted or non-inverted
