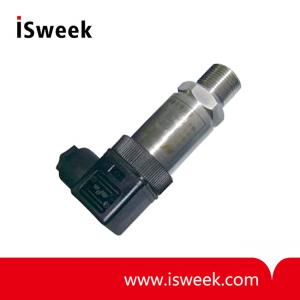

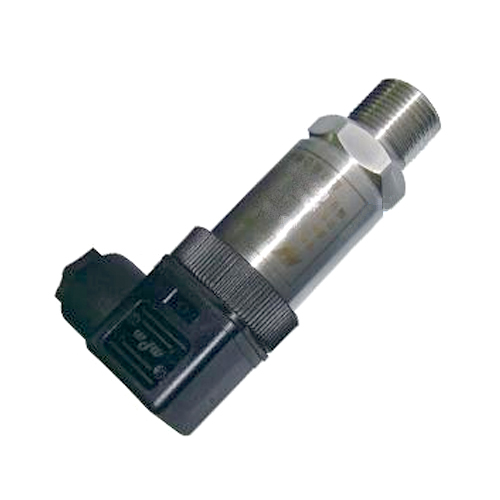

Ceramic Pressure Transmitter - JYB-T-HAG

Measuring range: 0～20MPa
Output: 4～20mA
Power supply: DC 24V (12V～32V)
Medium temperature: -20°C～60°C
Environment temperature: -20°C～60°C
Nonlinear: ± 0.2％F.S
Repeatability: ± 0.2％F.S
Long-term stability: ± 0.5％F.S/y

Model Number: JYB-T-HAG

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JYB-T-HAG Ceramic Pressure Transmitter Introduction
? Small size is convenient for installation
? Ceramic sensing element, strong corrosion resistance;
? Over-current, over-voltage, reverse polarity protection, reliable in performance.

JYB-T-HAG Ceramic Pressure Transmitter Use
The product is widely used in automobiles, central air-conditioning, refrigeration equipment, water treatment engineering, environmental purification, hydraulic pneumatic control engineering and other fields. It's a good replacement for old pressure equipment.

JYB-T-HAG Ceramic Pressure Transmitter Parameters

Measuring range	0～20MPa
Accuracy class	grade 0.5, grade 1
Output	4～20mA
Power supply	DC 24V (12V～32V)
Load capacity	current mode ≤500Ω (DC24V supply)
Medium temperature	-20°C～60°C
Environment temperature	-20°C～60°C
VCC	DC 24V (12V～32V)
Nonlinear	± 0.2％F.S
Repeatability	± 0.2％F.S
Long-term stability	± 0.5％F.S/y
Temperature drift	± 0.03％F.S/°C
Over load pressure	160KPa - 6MPa, two times of range; 6MPa-20MPa, 1.5 times of range
Electrical connection	big Horsman
Process connection	M20 x 1.5
Measuring medium	compatible with Al2O3, stainless steel, and nitrile butadiene rubber
IP grade	IP 65
