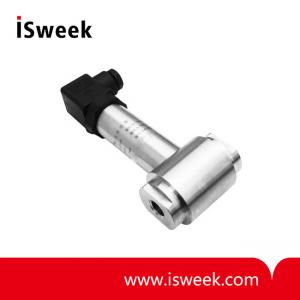

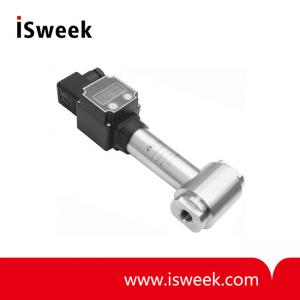

Differential Pressure Transducer - CS-PT500
? ?Range: 0….+5KPa…….+5000KPa
? ?Overload: 1.5 times
? ?Static pressure: three/ five/ten times，20MPa
? ?Accuracy: 0.25%,0.5%
? Working temp?erature: -40℃-85℃
? ?Output: 4-20mA, 0/1-5V, 0-10V
? ?Power: 10-30VDC, 8-36VDC/AC,11-30VDC/AC
- Model Number: CS-PT500
- Data Sheet:
- Quantity:
- - +
Product Specification
CS-PT500
Differential Pressure Transducer
CS-PT500 Differential Pressure TransducerTechnical parameters
|
The routine |
Numerical |
|
Range |
0…+5KPa…+5000KPa |
|
Overload |
1.5 times |
|
Static pressure |
three/ five/ten times，20MPa |
|
Accuracy |
0.25%,0.5% |
|
Working temperature |
-40℃-85℃ |
|
Output |
4-20mA, 0/1-5V, 0-10V |
|
Power |
10-30VDC, 8-36VDC/AC,11-30VDC/AC |
|
Port |
M20×1.5,G1/2, G1/4 |
