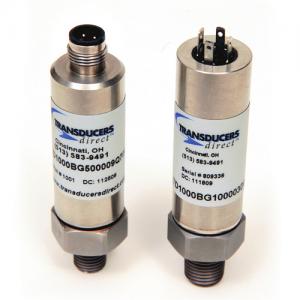

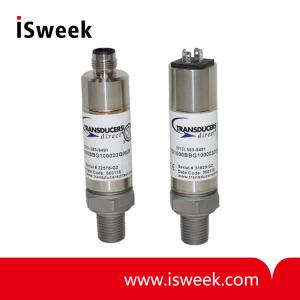

Digital Measurement General Purpose Industrial Pressure Transducer - TD1000 Series

? Totally digital proprietary design
? Innovative redundent sensing elements
? 24V digital output for pressure or temp switch point
? Voltage and current outputs
? Vacuum and compount pressure ranges available
? Custom pressure Ranges and outputs available
? 0.25% and 0.15% accuracy available
? ASIC technology, no zero/span potentiometers
? All stainless steel welded housing

Model Number: TD1000 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

The TD1000 Series Ultra High Resolution Digital Measurement, General Purpose, Pressure Transducer that Includes Vacuum and Compound Pressure Ranges.

TD1000 Series Pressure Transducer FEATURES
? Totally digital proprietary design
? Innovative redundent sensing elements
? 24V digital output for pressure or temp switch point
? Voltage and current outputs
? Vacuum and compount pressure ranges available
? Custom pressure Ranges and outputs available
? More standard pressure ranges, Industry First
? Optional 4x or 10x over pressure (on most ranges)
? 0.25% and 0.15% accuracy available
? ASIC technology, no zero/span potentiometers
? All stainless steel welded housing
? IP-69K rated seal available (high pressure wash down)
? Innovative low current consumption, ideal for custom wireless solutions
? Programable systems available for OEM/systems integrators for in-house configuring of outputs, ranges and set points to reduce inventory and lead times
? Calibration Certificates available (contact customer service)
? Available in vacuum, compound, gauge and absolute pressure

TD1000 Series Pressure Transducer DESCRIPTION
The TD1000 Series digital/configurable (an industry first) industrial pressure transducer features stability and accuracy over a wide temperature range at lower cost than competitive units typically not found in older analog designs yet is plug and play with most lower grade competitive units.

With its proprietary digital/ASIC technology, the TD1000 Series features field proven redundant sensing elements without the need for solder in resistors or trim pots that can drift over time. This provides years of excellent performance and reliability even in the harshest/demanding applications. This combined with optional 4x or 10x over pressure and the optional integrated temperature or pressure digital switch feature, makes the TD1000 Series truly an industry first and second to none.

For extreme applications where power washers are used for wash down, the TD1000 Series optional IP69K seal, another industry first, makes it ideal no matter what the environment.

With its flexible low power design and lower manufacturing costs, the TD1000 Series offers outstanding value and makes it ideal for custom wireless applications.

TD1000 Series Pressure Transducer SPECIFICATIONS

Performance	Performance @ 25°C (77°F)
Accuracy	0.25% (optional 0.15%) BFSL - (vac to zero range with 4-20mA outupt, 0.5% BFSL), TD1010 units: 0.5% BFSL, Absolute units with 0-15 psi range and 4-20mA output, 0.5% BFSL
Overange Protection	2x Rated Pressure or optional 4x and 10x
Pressure Range	see ordering chart - up to 6000 psi (414 bar) (optional higher ranges available)
Burst Pressure	5x or 20,000 psi, whichever is less
Pressure Cycles	>100 million
Update Time	<=1msec
Digital Output	Optional digital output for pressure, maintenance or temp switch point (not available on 4-20mA output units), max load current 20mA
Environmental Data
Temperature
Compensated Temperatures	-40 to 100°C (-40 to 212°F)
Operating Temperatures	-40 to 100°C (-40 to 212°F)
Storage	-40 to 125°C (-40 to 250°F)
TEB	0.9% FS
Long Term Drift	0.2% FS/year (non-cumulative)
Shock	100g, 11 ms, 1/2 sine
Vibration	20g, peak, 20 to 2400 Hz
EMI/FRI Protection	Yes
Rating	Up to IP-69K available (high pressure wash down)
Approvals	CE
Mechanical Configuration
Pressure Connections	See ordering chart
Wetted Material	17-4PH stainless steel (for other materials consult factory)
Electrical Connection	Cable, 9.4 Din, IP-69K 4 pin M12 Connector
Case	(housing) 304 stainless steel
Electrical Data
Excitation	4-28VDC, Typ (must be at least 0.3V above full output voltage), 7.5VDC min for 4-20mA
Output	see ordering chart
Output Impedance	<100 Ohms, Nominal
Current Consumption	25mA max (current output), <5mA (voltage output)
Output Noise	<2mV RMS
Reverse Polarity Protection	Yes
Zero and Span Offset Tolerance	1%
Maintenance Mode	The maintenance mode digital output indicates 1/2 bridge failure and can be selected instead of pressure or temp set point with the designation“M”.
