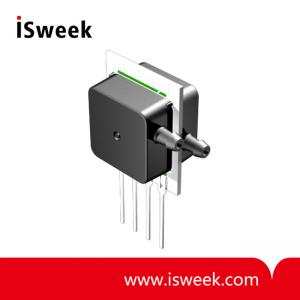

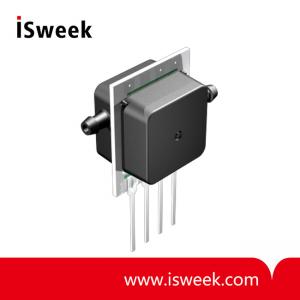

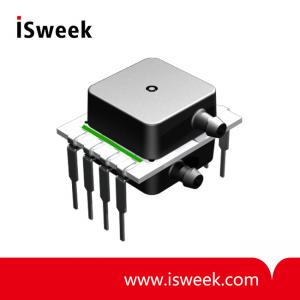

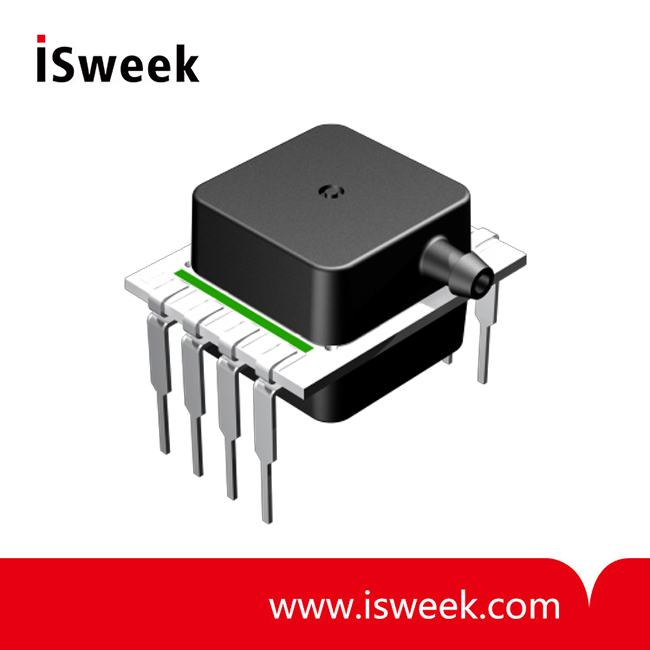

DLV Series Low Voltage Digital Pressure Sensors - DLV-005G-E1BD-C-NI3F

? 5 to 60 psi and Barometric Pressure Ranges
? Supply Voltage (Vs) 6 Vdc
? Common Mode Pressure 10 psig (70 kPa)
? Lead Temperature (soldering 2-4 sec.) 270 °C
? Operating Temperature? -25°C to 85°C
? Storage Temperature? -40°C to 125°C
? Humidity Limits (non condensing) 0 to 95% RH

Model Number: DLV-005G-E1BD-C-NI3F
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

DLV Series Low Voltage Digital Pressure Sensors General Description
The DLV Series Mini Digital Output Pressure Sensor is based on the already popular DLVR series pressure sensors. This series offers excellent perfromance over middle pressure ranges of 5 PSI to 60 PSI compared to the DLVR low pressure range products.

The supply voltage options ease integration of the sensors into a wide range of process control and measurement systems, allowing direct connection to either I2C or SPI serial communications channels. For battery-powered systems, the sensors can enter very low-power modes between readings to minimize load on the power supply

These calibrated and compensated sensors provide accurate, stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gasses and the like. A SIL-Gel die coating is added for enhanced media protection.

DLV Series Low Voltage Digital Pressure Sensors Features
? 5 to 60 psi and Barometric Pressure Ranges
? 3.3V or 5.0V Supply Voltage
? I2C or SPI Interface
? Better than 0.5% Accuracy Over Temperature Typical
? Die Sil-Gel Coating for Enhanced Media Protection

DLV Series Low Voltage Digital Pressure Sensors Applications
? Medical Breathing
? Environmental Controls
? HVAC
? Industrial Controls
? Portable/Hand-Held Equipment

DLV Series Low Voltage Digital Pressure Sensors

Pressure Sensor Maximum Ratings		Environmental Specifications
Supply Voltage (Vs)	6 Vdc	Compensated Temperature
Common Mode Pressure	10 psig (70 kPa)	Commercial	0°C to 70°C
Lead Temperature (soldering 2-4 sec.)	270 °C	Industrial	-20°C to 85°C
		Operating Temperature	-25°C to 85°C
		Storage Temperature	-40°C to 125°C
		Humidity Limits (non condensing)	0 to 95% RH

DLV Series Low Voltage Digital Pressure Sensors Standard Pressure Ranges

Device	Operating Range		Proof Pressure		Burst Pressure		Nominal Span
Device	PSI	kPa	PSI	kPa	PSI	kPa	Counts
DLV-005D	± 5	35	20	140	40	275	±6,553
DLV-015D	± 15	100	40	415	120	830	±6,553
DLV-030D	± 30	200	120	830	200	1,380	±6,553
DLV-060D	± 60	400	200	1,380	200	1,380	±6,553
DLV-005G	0 to 5	35	20	140	40	275	13,107
DLV-015G	0 to 15	100	60	415	120	830	13,107
DLV-030G	0 to 30	200	120	830	200	1,380	13,107
DLV-060G	0 to 60	400	200	1,380	200	1,380	13,107
DLV-015A	0 to 15 psiA	100	60	415	120	830	13,107
DLV-030A	0 to 30 psiA	200	120	830	200	1,380	13,107
DLV-060A	0 to 60 psiA	400	200	1,380	200	1,380	13,107
DLV-611M	600 to 1100 mbarA	60 to 110 kPa	60	415	120	830	13,107

DLV Series Low Voltage Digital Pressure Sensors How to Order

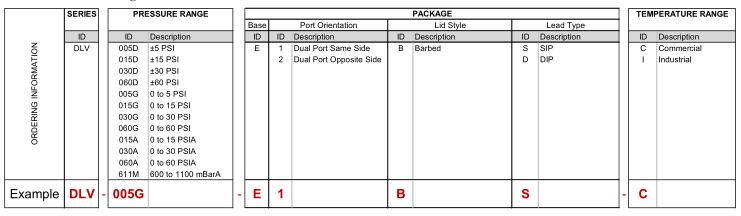

Refer to Table 1 for configuring a standard base part number which includes the pressure range, package and temperature range. Table 2 shows the available configuring options. The option identifier is required to complete the device part number. Refer to Table 6 for the available package options.
Example P/N with options: DLV-005G-E1BD-C-NI3F

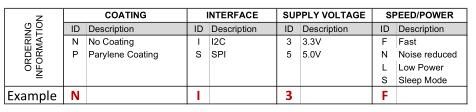

Table 1 - How to Configure a Base Part Number
