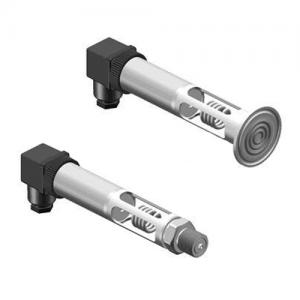

High Temperature Pressure Transmitter - JYB-KO-GW
? Measuring range:
screw type: any range within 0~2MPa
clamp: any range within 100kPa~2MPa
? Environment temperature: -20°C~85°C
? Power supply: DC 24V (12V~32V)
? Output: 4~20mA, 0~10mA; 0~5V
? Nonlinear: ± 0.2%F.S
? Response time: ≤ 50ms
- Model Number: JYB-KO-GW
- Quantity:
- - +
Product Specification
JYB-KO-GW High Temperature Pressure Transmitter Introduction
? Pressure control in high and middle temperature industrial process
? Water treatment engineering, petroleum and chemical industry
? Food, medicine, brewing, latex, aviation field
JYB-KO-GW High Temperature Pressure Transmitter Characteristic
? Whole stainless steel laser welding, excellent anticorrosion and shock resistance
? Has a wide temperature measuring range, very mini pressure value error
? Work stable and strong anti-interference capability
? Double diaphragm structure design
? Many process connect ways such as level film structure or thread
? Prevent the surge voltage, reverse polarity over-voltage and over-current protection
? Wide measurement medium range and high reliability
JYB-KO-GW High Temperature Pressure Transmitter Parameters
| Measuring range |
screw type: any range within 0~2MPa clamp: any range within 100kPa~2MPa |
| Environment temperature | -20°C~85°C |
| Power supply | DC 24V (12V~32V) |
| Over load pressure | two times of range |
| Output | 4~20mA, 0~10mA; 0~5V |
| Accuracy class | grade 0.2 (range from 70kPa to 2MPa ) limit to screw type |
| grade 0.5 (range from 100kPa to 2MPa ) | |
| Nonlinear | ± 0.2%F.S |
| Electrical connection | Horsman interface |
| Medium temperature |
screw type: -30°C~200°C clamp: -30°C~300°C |
| Response time | ≤ 50ms |
| Load capacity |
current mode ≤500Ω voltage mode ≥3kΩ |
| Repeatability | ± 0.1%F.S |
| Long-term stability | ± 0.1%F.S/y |
| Nonlinear | ± 0.2%F.S |
| Thermal zero drift | ± 0.02%F.S/°C |
| Measuring medium | oil, water, gas and other compatible with stainless steel medium |
| IP grade | IP 65 |
| Weight | about 330g (screw type) 360g (clamp) |
