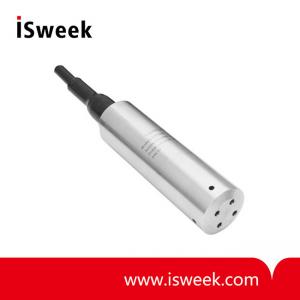

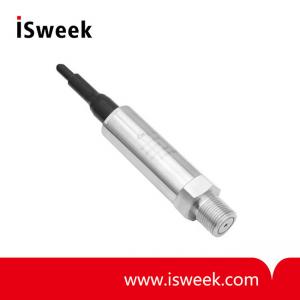

Level Transducer Embeedded Temperature - CS-WPT400

The routine

Value

Note

Measure Range

0~3......200 mH2O

1mH2O =9.81KPa

Overload Pressure

1.5*RP(rated pressure)

Broken Pressure

3*RP(rated pressure)

Accuracy

±0.5%F.S

Stability

Typical 0.1%F.S/Y,                     Max 0.2%F.S/Y

Operating Temprature

-40℃~85℃

Compensating Temprature

-10℃~70℃

Medium Compatibility

Corrosive medium compatible with Cr18Ni9Ti,316L

Wires

Two-wire

Three-wire

Signal Output

4~20mA

1~5V

0.5~4.5V

Power Supply

10~30Vdc

8~30Vdc

5V(ratio)

Load Resistance

(U-10)/0.02(?)

>100k?

Insulation

>100M ?@50V

Elec.connector

five level protection.IP68

Pressure Port

Investment style, Threaded: M20×1.5, G1/4, G1/2, R1/2, NPT1/2

Pressure Form

Gauge G, Sealed Gauge S

Response Time: 10ms

EMC

EMI: EN50081-1/-2; EMS: EN50082-2
