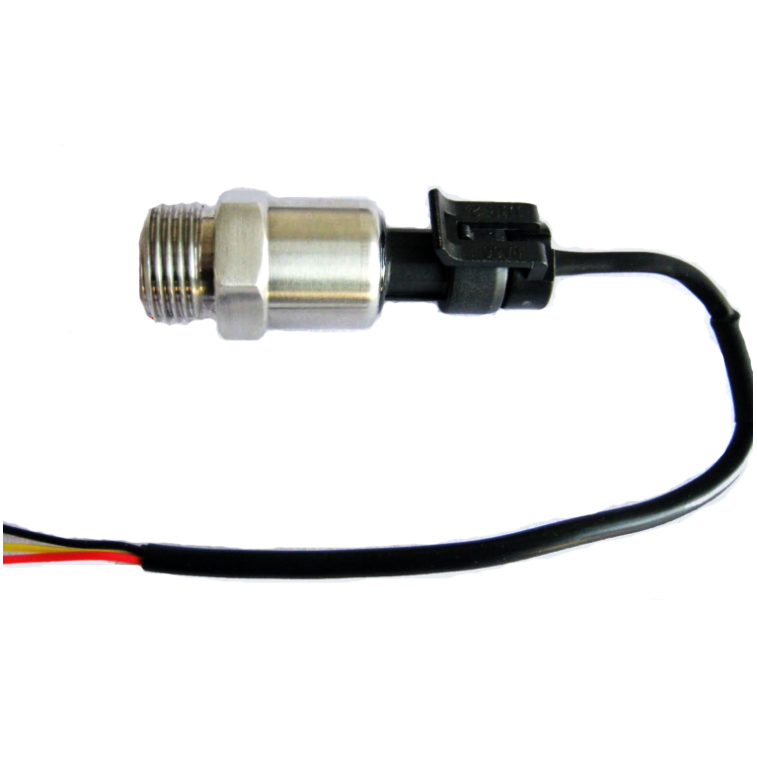

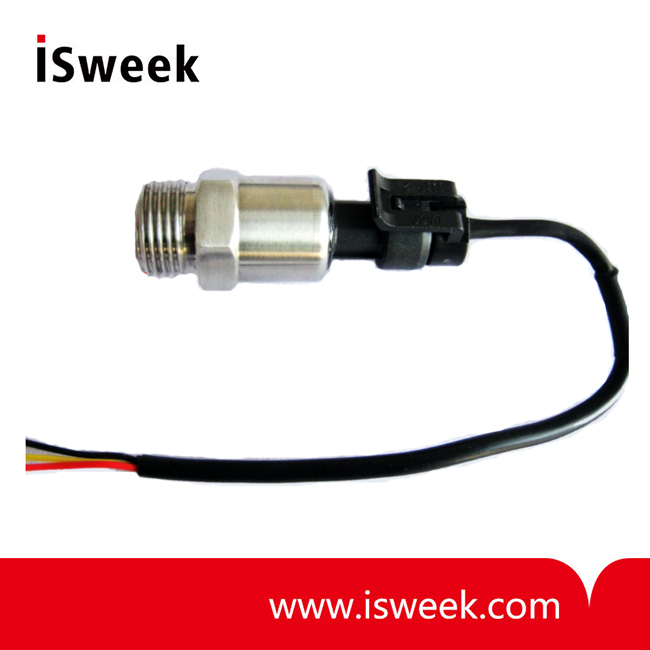

Low Cost Hydraulic Pressure Pneumatic Oil Pressure Sensor - HK1100C

Supply voltage: 5.0 VDC
Output: 0.5~4.5 VDC
Working current: ≤10 mA
Pressure range: 0~1.2 MPa
Operating Temp.: 0~85 ℃
Storage Temp.: 0~100? ℃?
Response: ≤2.0 ms

Model Number: HK1100C
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

HK1100C Oil Pressure Sensor Description
Low cost pressure sensor, stainless steel package, socket type connection, convenient replacement and installation, 1/2 inch pressure connector, quick connect pressure interface, prominent in the engineering application, the test atmospheric pressure, water pressure and oil pressure, customers have good feedback. Pressure range includes 0-1.2MPa, can meet most applications.

Input voltage can be customized. Pressure range can be customized. Stainless steel material. The output mode has analog voltage output and current output. Voltage output 0.5-4.5V, current output 4-20mA. Mainly used in air compressors, automotive, air conditioning, variable frequency pumps and other fields, interfaces, voltage, pressure range, material, lead length can be customized according to customer requirements

HK1100C Oil Pressure Sensor SPECIFICATION

Supply voltage:	5.0	VDC
Output:	0.5~4.5	VDC
Working current:	≤10	mA
Pressure range:	0~1.2	MPa
Proof Pressure:	2.4	MPa
Burst Pressure:	3.0	MPa
Operating Temp.:	0~85	℃
Storage Temp.:	0~100	℃
Measure error:	±1.5	%FSO
Full temp. range error:	±3.5	%FSO
Response:	≤2.0	ms
cycle life:	500,000	pcs
